Increased confidence for you and your patients
“Dose reduction is now a top priority everywhere in the guidelines, but how to achieve it is not always at hand. All the tools that have been made available to us with Alphenix Core + have been very useful to improve the overall safety of our procedures radiation-wise - Spot ROI and Live Zoom, but also sound alerts and the very intuitive dose tracking system.”
- Prof. Laurent Feldman
Prof. Laurent Feldman is a professor of Cardiology at Bichat Hospital (Paris University) and the Director of the Coronary Cathlab
- Prof. Laurent Feldman
Prof. Laurent Feldman is a professor of Cardiology at Bichat Hospital (Paris University) and the Director of the Coronary Cathlab

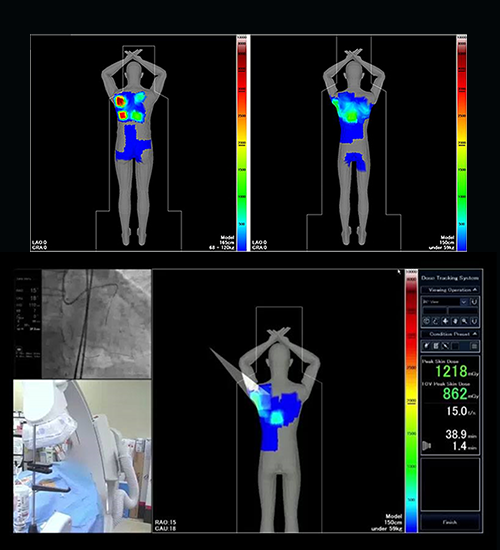

A study by The St George Hospital found that use of advanced Dose Reduction Technology (DTS) resulted in a 46% reduction in peak skin dose during coronary stent insertion. Researchers confirmed that ongoing real-time dose feedback is a critical factor in the successful modification of operator behaviour to reduce radiation dose. *
*Wilson S, Prasan AM, Virdi A, et al. Real-time colour pictorial radiation monitoring during coronary angiography: effect on patient peak skin and total dose during coronary angiography. EuroIntervention 2016;12: 939–47.
DoseRite

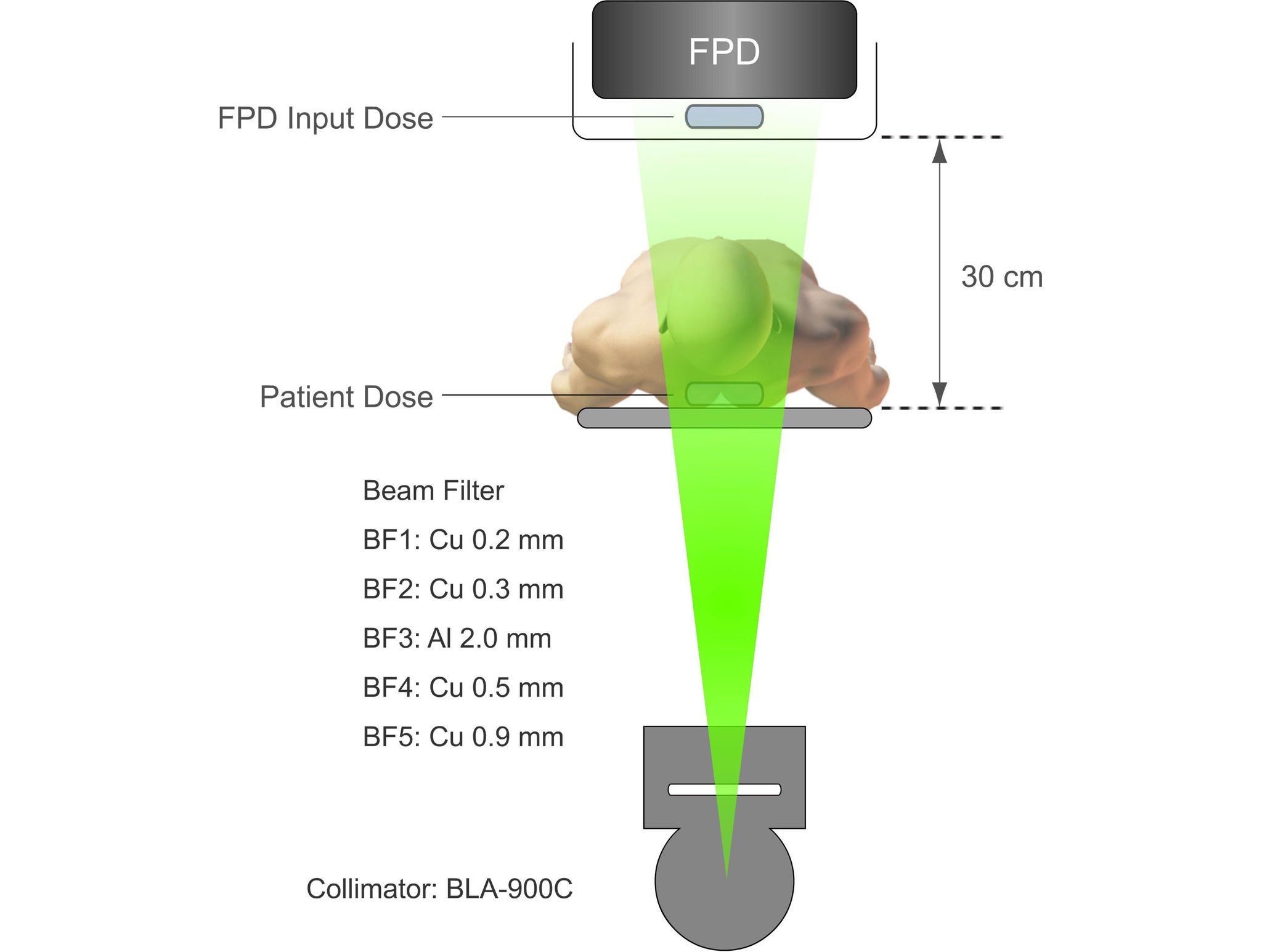

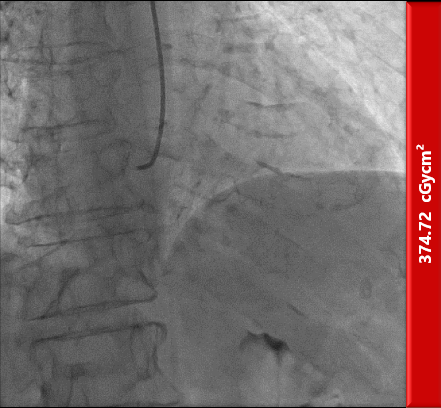

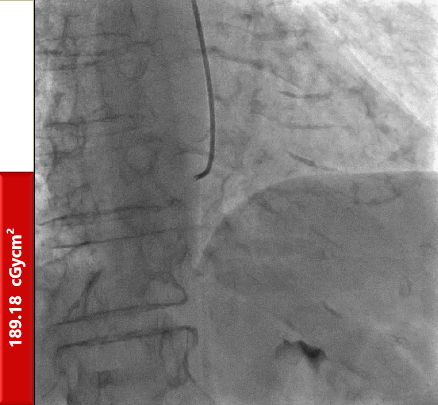

Spot Fluoro - Reduce scatter radiation by up to 50% with advanced collimation
See a more complete picture with less dose to surrounding anatomy. Spot Fluoro enables the operator to collimate a rectangular or square region of interest (ROI) anywhere within the general field of view.
- Reduce cumulative dose area product by up to 50%**
- Reduce scatter radiation by more than 50%**, enabling safer procedures for patients and interventional staff
- Freely collimate anywhere on the image with asymmetric blade movements
- LIH overlay with live fluoroscopy
- Next generation automatic brightness control with scatter correction, providing optimal image quality and clarity where you need it
DoseRite

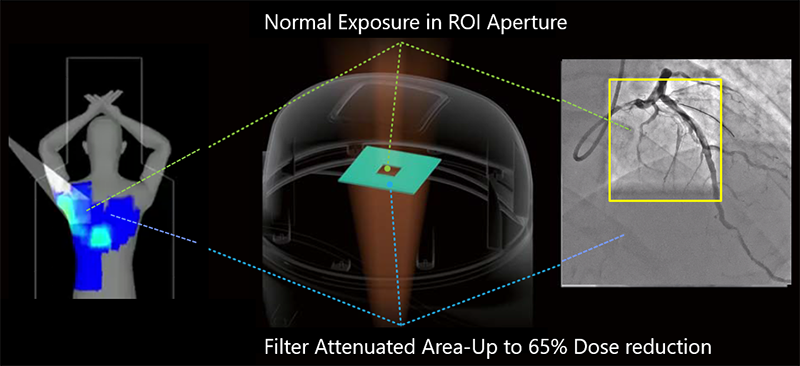

Spot ROI - Real-time picture in picture
Dose reduced by 65-85%
"Spot ROI helps us reduce radiation dose to our patients (and staff). Its use of a filter that is introduced into the beam with an aperture means we can maintain the image quality we want at the point of treatment but the surrounding field of view with catheter tip and guide wire tip can still be seen at a dose that is reduced by 65-85%. "
Prof. Christopher Zeitz
Director of Interventional Cardiology
Queen Elizabeth Hospital
“Spot ROI is an optimal compromise between the best imaging quality around the target of the intervention and the lowest radiation dose in remote areas.”
- Prof. Laurent Feldman
Bichat Hospital (Paris University)
- Prof. Laurent Feldman
Bichat Hospital (Paris University)
DoseRite
Live Zoom - Digital magnification with up to 50% dose reduction
- Digitally magnify the image display without increasing detector input dose
- Increases image display size in real-time during both fluoroscopy and digital acquisition (DA), offering dose savings compared to traditional FOV magnifications
ImagingRite

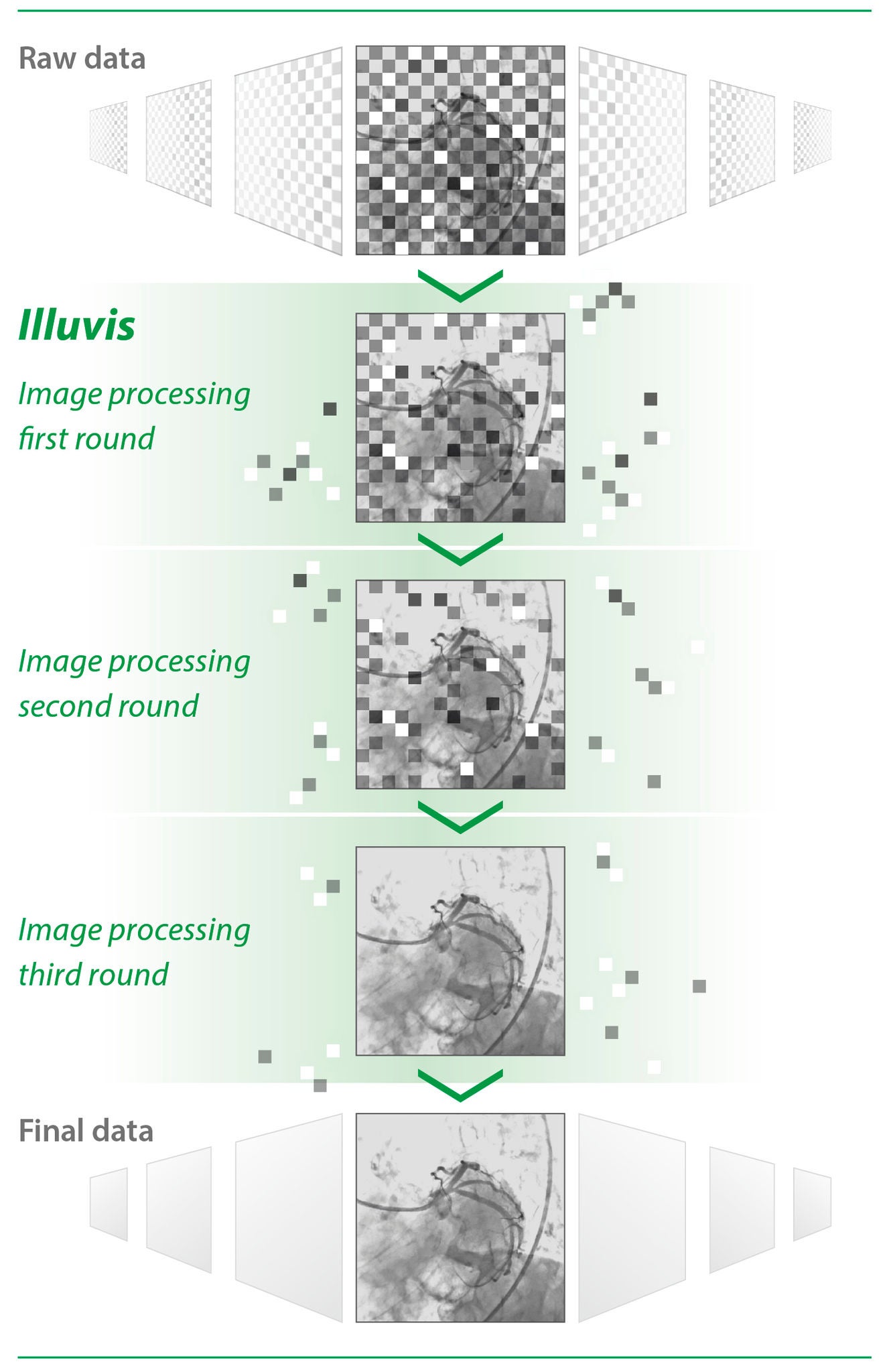

Illuvis - Navigate with confidence and accuracy
The Alphenix family features an improved imaging chain, the latest 16-bit processing and Canon Medical’s Illuvis noise reduction technology to provide clearer, sharper and more defined images during stent placement and ablation procedures at lower doses.
Leading Solutions for Your Interventions
Spot ROI is an optimal compromise between the best imaging quality around the target of the intervention and the lowest radiation dose in remote areas.
VISIONS magazine
Spot ROI is an optimal compromise between the best imaging quality around the target of the intervention and the lowest radiation dose in remote areas.
VISIONS magazine
Future-proofing TQEH with Alphenix Core+
We have also been able to reduce dose by up to 85% with built-in Spot ROI technology...With its increased image quality and low dose parameters, we are confident that we can deliver the very best care to our patients now and long into the future.
VISIONS magazine
We have also been able to reduce dose by up to 85% with built-in Spot ROI technology...With its increased image quality and low dose parameters, we are confident that we can deliver the very best care to our patients now and long into the future.
VISIONS magazine
Spot Region Of Interest Imaging: A Novel Functionality Aimed At X-Ray Dose Reduction In Neurointerventional Procedures
…a combination of the use of Spot F and Spot ROI, depending on the clinical situation, is a potentially useful technique for obtaining an appropriate quality of visual information while reducing the radiation dose received by the patient.
Ljubisa Borota and Andreas Patz, NCBI
…a combination of the use of Spot F and Spot ROI, depending on the clinical situation, is a potentially useful technique for obtaining an appropriate quality of visual information while reducing the radiation dose received by the patient.
Ljubisa Borota and Andreas Patz, NCBI
Real-time colour pictorial radiation monitoring during coronary angiography: effect on patient peak skin and total dose during coronary angiography
The DTS is simple to use and results in a substantial reduction of patient peak skin and total radiation dose. The greatest gains from DTS are evident during stent insertion, where the patient is exposed to the highest radiation risk.
Sharon M Wilson et al, NCBI
The DTS is simple to use and results in a substantial reduction of patient peak skin and total radiation dose. The greatest gains from DTS are evident during stent insertion, where the patient is exposed to the highest radiation risk.
Sharon M Wilson et al, NCBI
