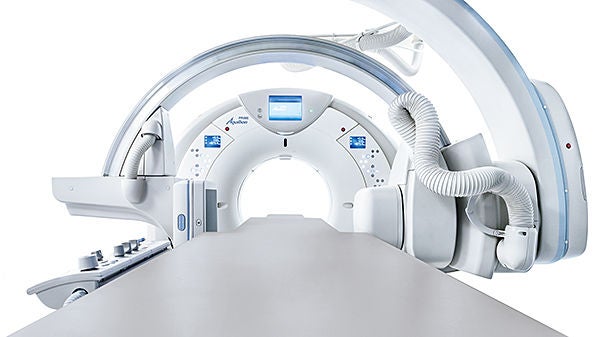

Alphenix Hybrid Angio-CT
One room. One system. Many possibilities.
The Alphenix Hybrid Angio-CT (4D CT) offers more possibilities to deliver safer and better treatment to your patients across a wide range of clinical applications. With a streamlined workflow in a single setting, there is no need to transfer patients between rooms, which improves patient care and boosts productivity. Switch easily between CT and angiography system to diagnose, treat and verify.
Lessons learnt from building an Angio-CT service
This roundtable discussion provides practical, experience-based advice for departments considering Angio-CT, along with clinical, operational and economic insights to help build a data-driven business case.
Speakers:
Prof. Afshin Gangi
Chairman of Radiology and Nuclear Medicine
Hospital of Strasbourg
Dr. Suhrid Lodh
Director of Interventional Radiology
St George Hospital
Michael Samuel
Director of Allied Health
Canberra Hospital
Moderator:
A/Prof. Diederick De Boo
Head of Interventional Radiology
Monash Hospital
Recorded Live Cases & Webinars
Discover insights and education content from leading interventional experts.
System Options
Configure your Alphenix Hybrid Angio-CT to meet your needs.

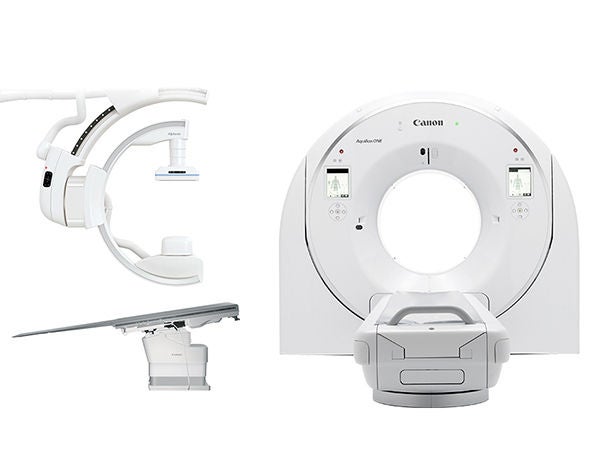

Alphenix Sky +
Advanced ceiling-mounted C-arm offers unprecedented flexibility and full body 3D imaging capability with faster acquisition, fewer artifacts and less contrast agent.
Aquillion ONE / INSIGHT Edition
(80 cm bore, 640 slices*, 16cm/rotation volume scan coverage)
For further information, please click

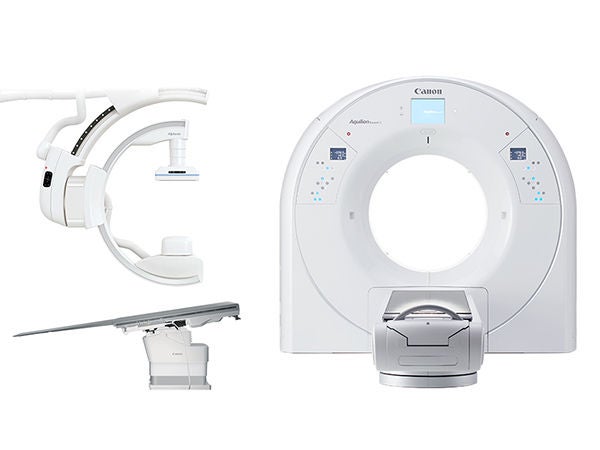

Alphenix Sky +
Advanced ceiling-mounted C-arm offers unprecedented flexibility and full body 3D imaging capability with faster acquisition, fewer artifacts and less contrast agent.
Aquillion Exceed LB

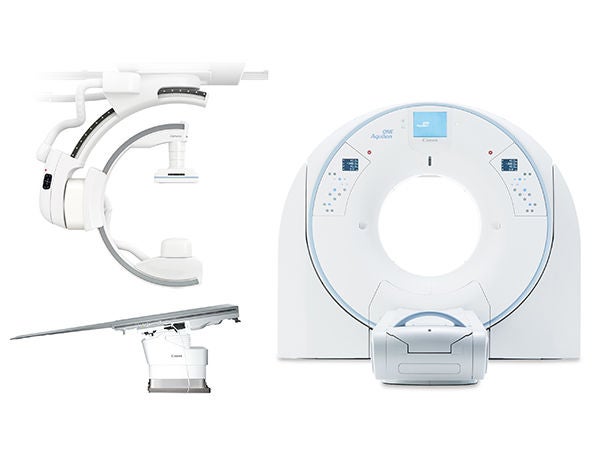

Alphenix Sky +
Advanced ceiling-mounted C-arm offers unprecedented flexibility and full body 3D imaging capability with faster acquisition, fewer artifacts and less contrast agent.
Aquilion ONE / GENESIS Edition
(78 cm bore, 640 slices*, 16cm/rotation volume scan coverage)
For further information, please click

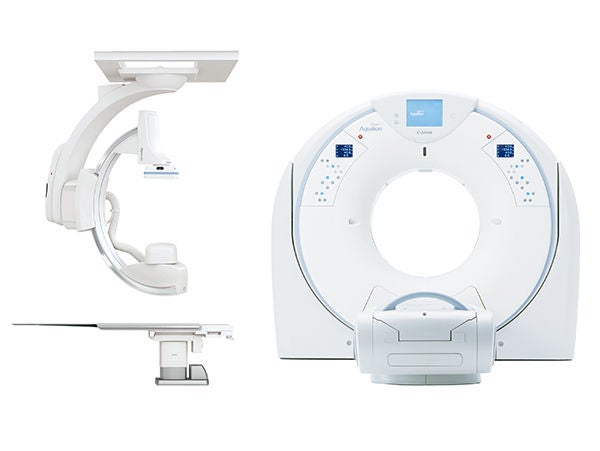

Alphenix Sky
Features a unique ceiling-mounted C-arm to provide longitudinal and lateral coverage to support upper extremity examinations.
Aquilion Prime SP
Maximum efficiency, prioritised patient safety, and increased revenue with Canon Medical’s 4D CT technology
Discover how one prestigious IR site used 4D CT to improve efficiency, increase revenue, and expand their radiology services, while simultaneously delivering high-quality care to maximise patient safety.
Workrite
Rapidly switch between modalities for the confidence and precision you need.
Slow and difficult transfers between fluoroscopy and CT can limit your opportunities to utilise an Angio-CT as a combined modality. With Canon’s Alphenix Angio-CT you can switch between Angio and CT in seconds, allowing you to utilise the system to its full potential.
Seamless integration provides you with the confidence you need during complex interventions.
“You do not hesitate to acquire CT images whenever they are needed.”
Dr Julien Garnon
University Hospital of Strasbourg, France
Refine and redefine intervention using the world’s first High-Definition technology
The Alphenix interventional systems feature the world’s first high definition (Hi-Def) detector with 76 micron pixel imaging mode. With more than twice the spatial resolution of conventional flat panel detectors (FPD), the Hi-Def detector helps clinicians visualise fine details and anatomical structures and deploy devices with accuracy and confidence.
Advanced intelligent Clear-IQ Engine (AiCE)
The only Hybrid Angio-CT solution powered by Deep Learning Reconstruction technology
Harnessing the enormous computational power of a Deep Convolutional Neural Network (DCNN), Advanced intelligent Clear-IQ Engine (AiCE) is trained to differentiate signal from noise, so that the algorithm can suppress noise while enhancing signal. Because it is trained with advanced MBIR, it exhibits high spatial resolution. But unlike MBIR, AiCE deep learning reconstruction overcomes the challenges (image appearance and/or reconstruction speed) in clinical adoption.
Customer testimonials
“At St George Hospital, integrated Angio-CT is redefining trauma and interventional care, delivering faster decisions, better outcomes, and a new model for multidisciplinary treatment. Angio-CT provides a buffet of interventional skills, all in one procedure, in one room.”
- Dr. Suhrid Lodh
Director of Interventional Radiology
"Switching between C-Arm and CT position takes only seconds. Changing from Angio to Arterial CT is very fast, and we do not hesitate to perform this if we feel that the tumour feeder may also have branches to another territory. This is very helpful in prostate embolisation, TACE and SIRT procedures. "
- Prof. Alban Denys
Head of Interventional Radiology at CHUV
“With Canon’s new Angio CT system, we have become more efficient and have been able to shorten the waiting times significantly for several interventions.”
- Dr. Olle Haller
Head of Interventional Radiology
Gävle Central Hospital, Sweden
“it is possible to check whether the procedure has been successful or not immediately after the procedure by checking the contrast pooling of the prostate, conducting non-enhanced CT after prostate artery embolization. With this information, they could explain whether the procedure was successful or not to the patient. All patients were treated and discharged on the same day of the procedure.”
-Dr. Jung
Chief of Intervention Center at the Human Medical Imaging & Intervention Center, Korea.
Hybrid Angio-CT
Toolkit
The Alphenix systems provide a comprehensive suite of advanced imaging tools to enhance visualisation. Applications are integrated into the new feature-rich workstation to improve workflow.
Publications
Advanced Interventional Software

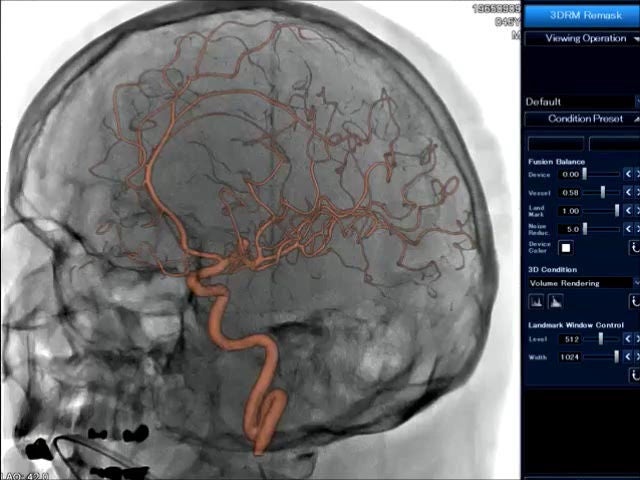

3D Roadmap
Turn 3D Acquisitions into Live Fluoro Roadmaps
3D image display changes according to the system conditions such as the C-arm angle, SID, field size, tabletop height, and tabletop panning.

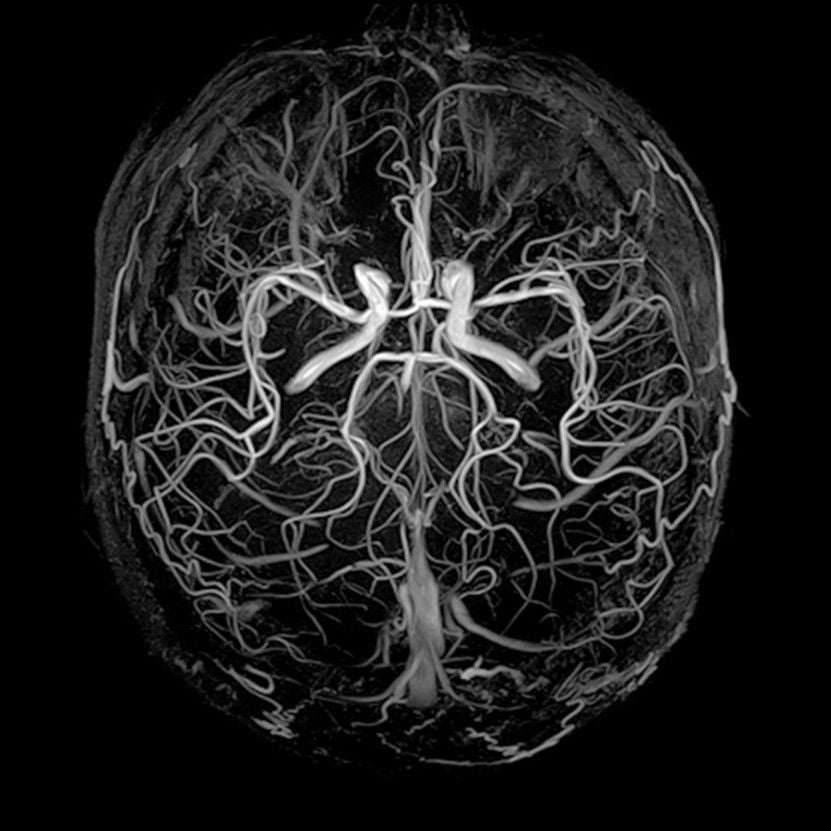

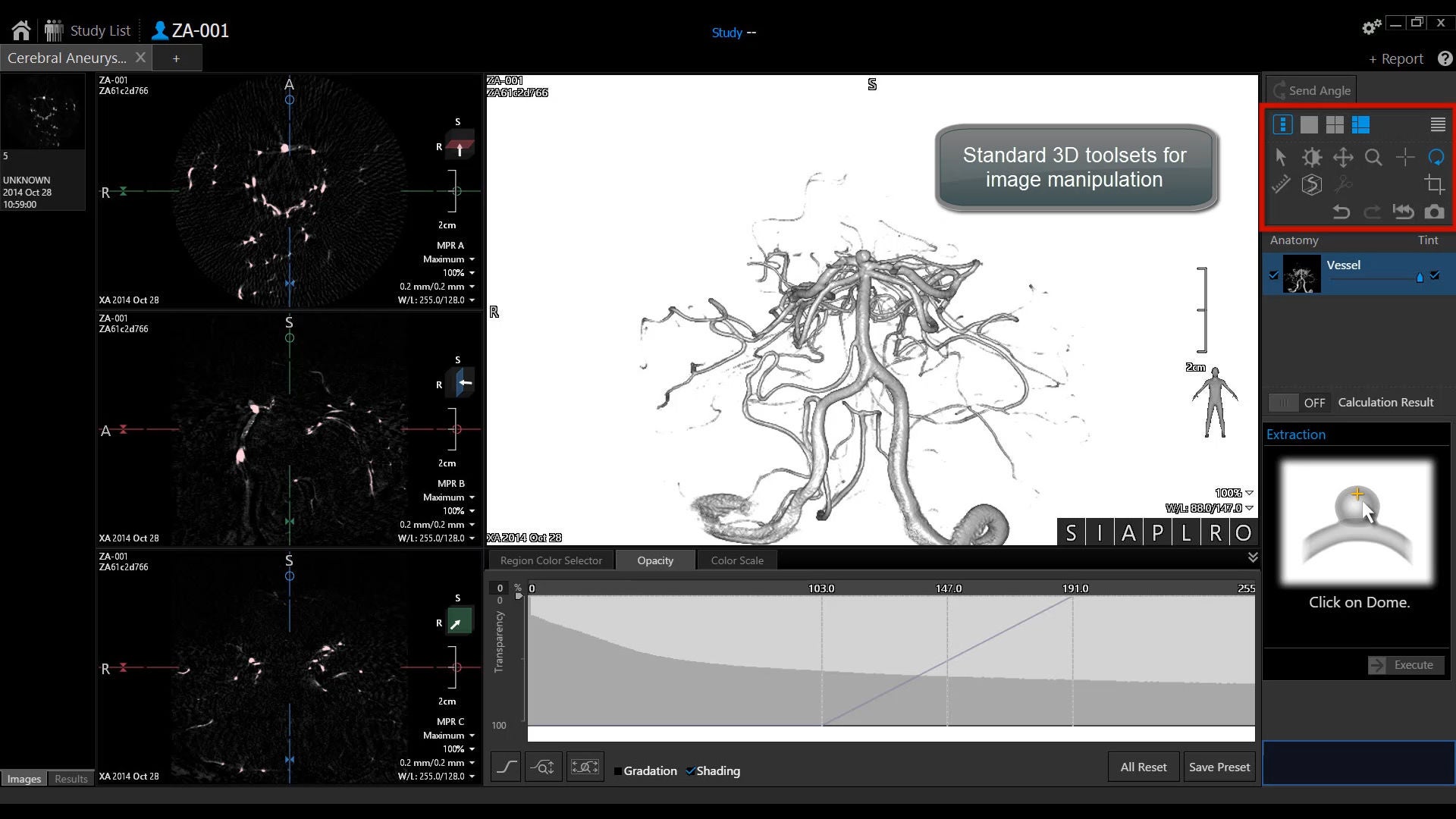

Cerebral Artery Analysis (CAA)
Enhanced visualisation
This application facilitates extraction and segmentation of identified aneurysms on the cerebral arteries, allowing for assessment of morphological characteristics.

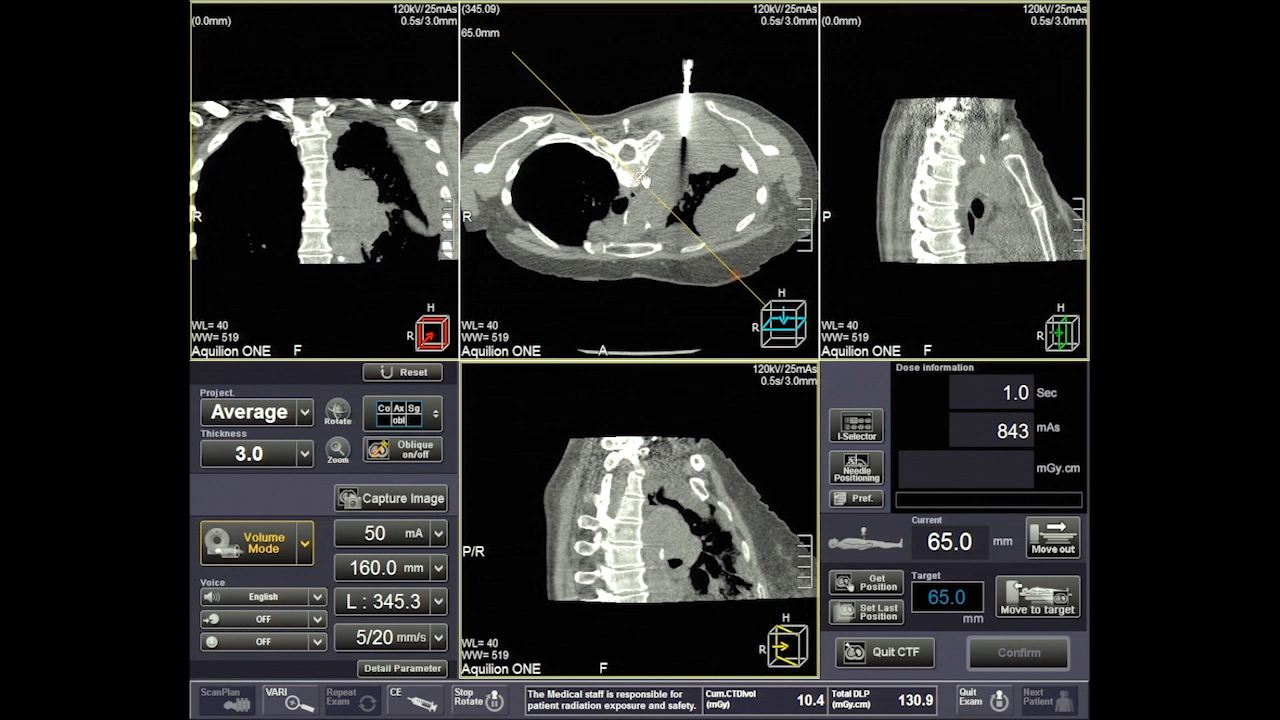

Volumetric CT Fluoro
Perform more efficient CT interventional procedures
Axial, coronal, sagittal and oblique reference are used for optimal interventional guidance plan.
"The development of true 3D fluoroscopy on the Aquilion ONE has brought real clinical benefits for tackling even the most challenging biopsy procedures."
Prof. Dr. Elmar Kotter, Department of Diagnostic Radiology, University Hospital Freiburg
Prof. Dr. Mathias Langer, Medical Director of the Department of Diagnostic Radiology, University Hospital Freiburg

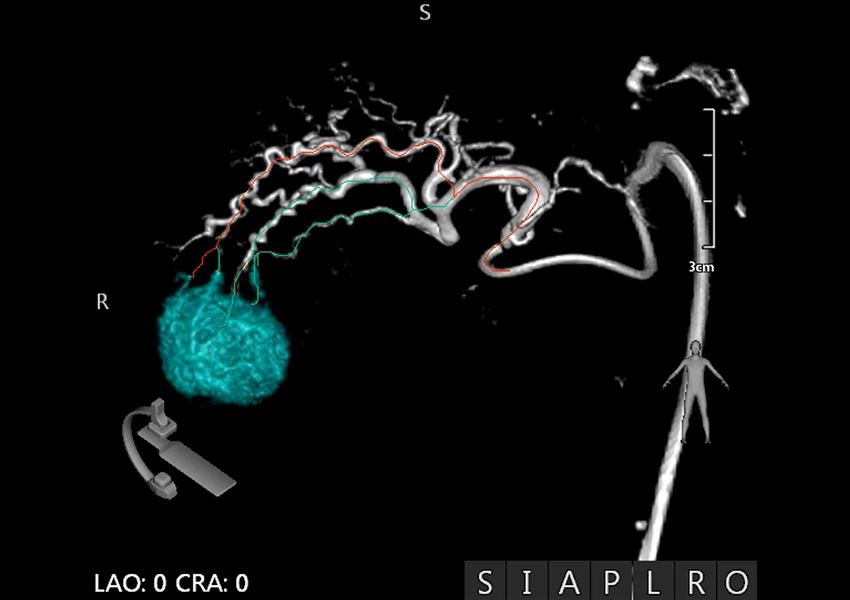

Embolisation Plan
Rapid tumour and feeder vessel extraction
- Identify and extract up to ten tumours and associated feeder vessels using the Alphenix Workstation
- Utilise CTA or Alpha CT datasets
- Overlay with Fluoro utilising 3D Roadmap (Alpha CT) or Multi-Modality Fusion (CTA)
Needle Guidance
CT or XA Datasets
Needle guidance function enables positioning of the C-arm to the optimum viewing position and display of a puncture guide line for assistance.

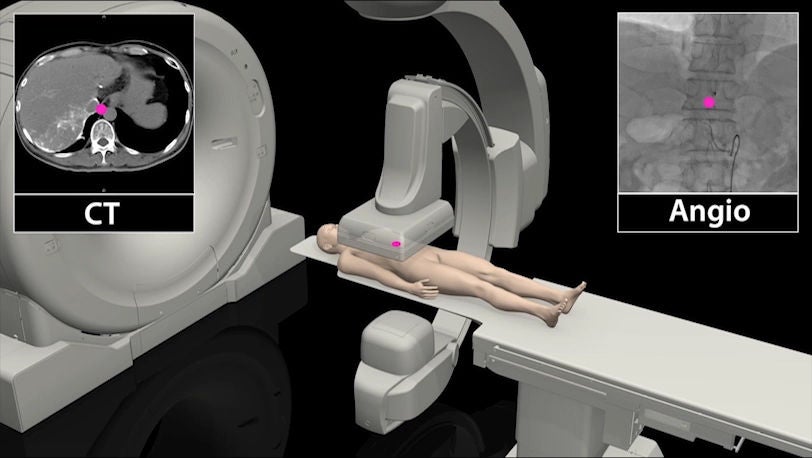

SUREGuidance
Automatic positioning without moving the patient
SUREGuidance provides a fast and accurate means of centralising the target exposure area between CT and Angiography. The CT gantry, c-arm and patient table move automatically, improving workflow, accuracy and reducing procedure time.

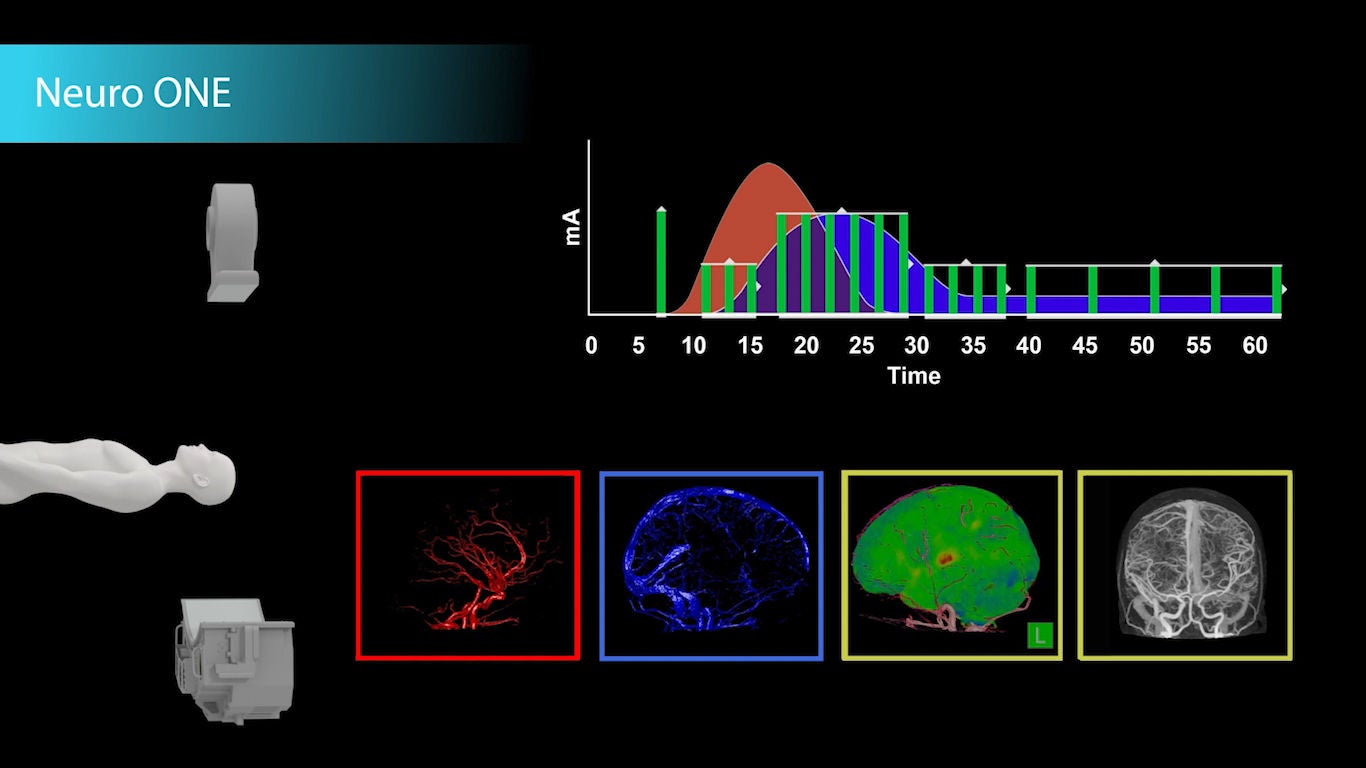

SUREStroke Triage in Under 5 Minutes
Volumetric Whole Brain Perfusion*
An entire whole-brain perfusion study can be acquired in 60 seconds and with Vitrea's automatic processing applications perfusion maps and CT DSA information will be ready to review in 4.5 minutes from anywhere in your network.
*Alphenix Hybrid Angio-CT Aquilion ONE Genesis
*Alphenix Hybrid Angio-CT Aquilion ONE Genesis
Implementation of a Hybrid Angio–CT system: increased short‑term revenue at an academic radiology department
Average case volume per month increased 12% in the Hybrid Angio–CT suite when compared to the previous traditional angiography suite (P<0.05). The variety of IR procedures in the Hybrid Angio–CT suite also expanded to include more complex interventional radiology and interventional oncology procedures.
Jonathan Fergus et al. Springer Science+Business Media
Taking Interventional Radiology to Infinity and Beyond
"Switching between C-Arm and CT position takes only seconds. Changing from Angio to Arterial CT is very fast, and we do not hesitate to perform this if we feel that the tumour feeder may also have branches to another territory. This is very helpful in prostate embolisation, TACE and SIRT procedures. "
VISIONS magazine
Alphenix 4D CT – Cutting-Edge Innovation in one Single Room
“We’ve been positively surprised by this competitive low dose. The scanner provides low radiation and comes with iterative reconstruction as well as DLR. Also, procedures are shorter, so patients are less exposed to radiation dose. Everything is fluid and precise.”
Dr. Paul Desclée, Head of the Radiology Department, Jolimont Hospital, Belgium.
The Alphenix 4D CT – More Treatments in a More Accurate Manner
“With Canon’s new Angio CT system, we have become more efficient and have been able to shorten the waiting times significantly for several interventions.”
Dr. Olle Haller, Gävle Central Hospital, Sweden
The Largest Radiology Centre in Korea Increases the Success Rate of Prostate Artery Embolisation (PAE)
“it is possible to check whether the procedure has been successful or not immediately after the procedure by checking the contrast pooling of the prostate, conducting non-enhanced CT after prostate artery embolisation. ”
VISIONS magazine
Expanding Interventional Radiology with the Highest Image Quality
The Alphenix 4D CT helps considerably improve minimally invasive treatments, by facilitating workflow, reducing surgery time and improving image quality, according to a leading interventional radiologist at a prestigious cancer centre in Italy.
VISIONS magazine

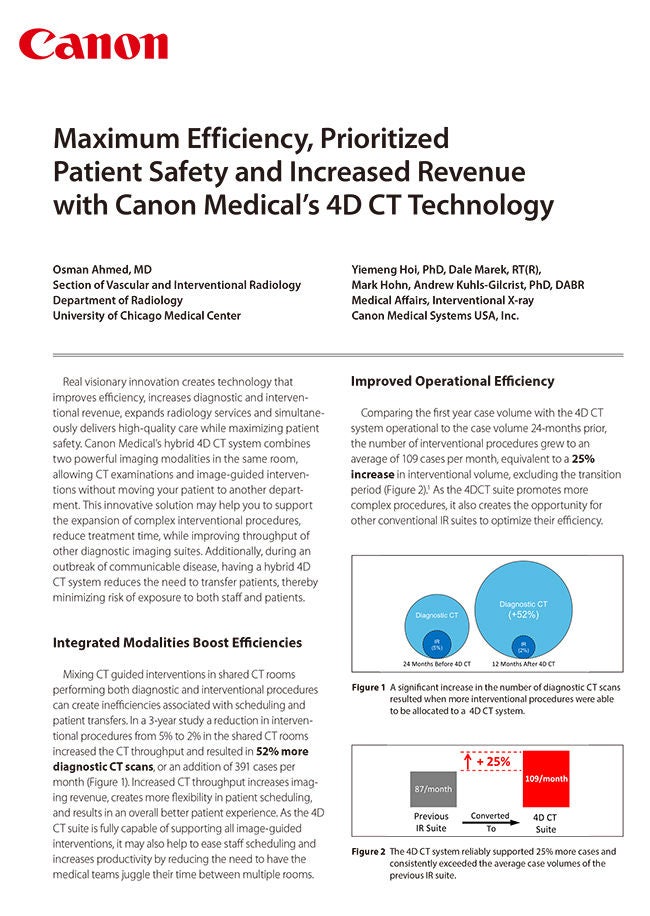

Maximum efficiency, prioritised patient safety, and increased revenue with Canon Medical’s 4D CT technology
Discover how one prestigious IR site used 4D CT to improve efficiency, increase revenue, and expand their radiology services, while simultaneously delivering high-quality care to maximise patient safety.
VISIONS magazine
Refine and redefine intervention using high-definition (Hi-Def) technology
Average procedure time, average fluoro time, the total number of X-ray pulses and cumulative air kerma were all significantly reduced …
Andrew Kuhls-Gilcrist et al
High Definition Imaging Reduces Procedure Time Without Impacting Patient Dose in Image-Guided Neuro Interventional Procedures
Preliminary results from over 4,000 neurointerventional procedures at a single centre demonstrate that the improved spatial resolution of the Hi-Def detector may result in reduced procedure time and number of irradiation events. In addition, there was no observable increase in patient dose with the utilisation of the Hi-Def detector.
VISIONS magazine
Improved Utilisation Following Conversion of a Fluoroscopy Suite to Hybrid CT/ Angiography System
Nicholas Feinberg, MD, Brian Funaki, MD, Mark Hieromnimon, BS, Samuel Guajardo, RT, Rakesh Navuluri, MD, Steven Zangan, MD, Jonathan Lorenz, MD, and Osman Ahmed, MD
Expanding Use of Interventional Radiology in Clinical Practice
Prof. Yasuaki Arai
Executive Advisor to the President Interventional Radiology Center
Department of Diagnostic Radiology National Cancer Center Hospital
