Canon Medical Systems ANZ Won the 2021 MTAA Kerrin Rennie Award for its cutting-edge Hi-Def technology
The Medical Technology Association of Australia (MTAA) recognised the innovative and extraordinary contribution of the world’s first high-definition (Hi-Def) flat panel detector– used in image-guided endovascular procedures – in improving patient outcomes. This aligns perfectly with Canon Medical’s Made for Life philosophy - prioritising patient outcomes as the primary driver of our innovation.
Refine and redefine intervention
Visualisation like never before with the High-Definition mode

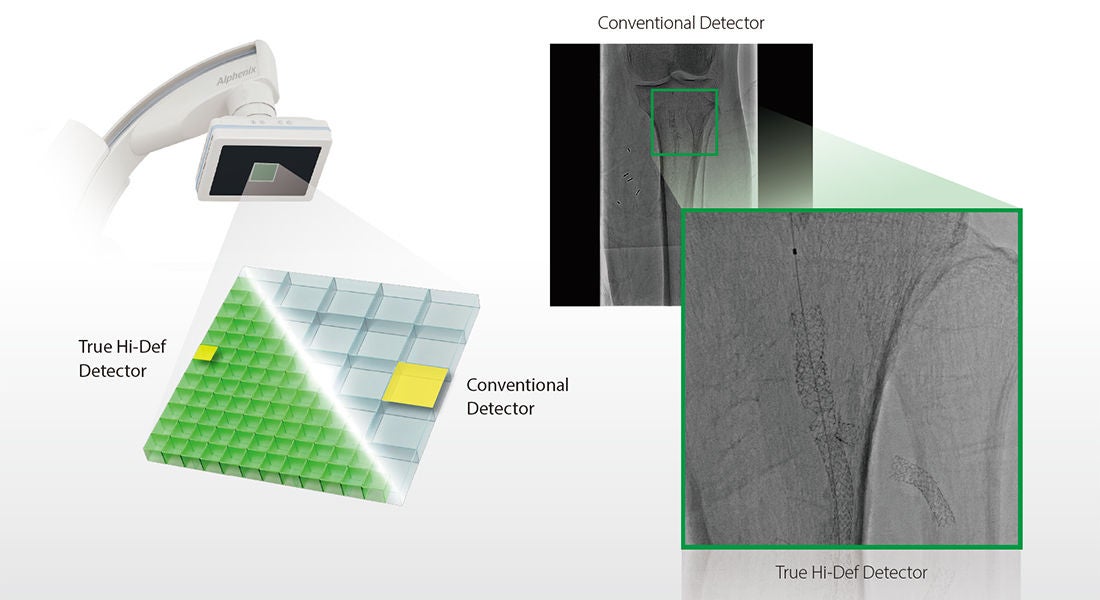

The Alphenix interventional systems feature the world’s first 30x40cm high definition (Hi-Def)* detector with 76 micron pixel imaging mode. At more than twice the spatial resolution of conventional flat panel detectors (FPD), the Hi-Def detector helps clinicians visualise fine details and anatomical structures and deploy devices with accuracy and confidence.
*Available on the Alphenix Sky +, Hybrid Angio-CT with Sky +, Biplane, and Core+ systems. Featuring the highest level of resolution available in the angiography market, Canon Medical have redefined interventional visualisation, providing clinicians with unsurpassed clinical confidence during interventional procedures.
1: True Hi-Def imaging with 76 micron pixel modes. Documented testing has demonstrated imaging capability with up to 2.5 times greater spatial resolution than conventional detectors.

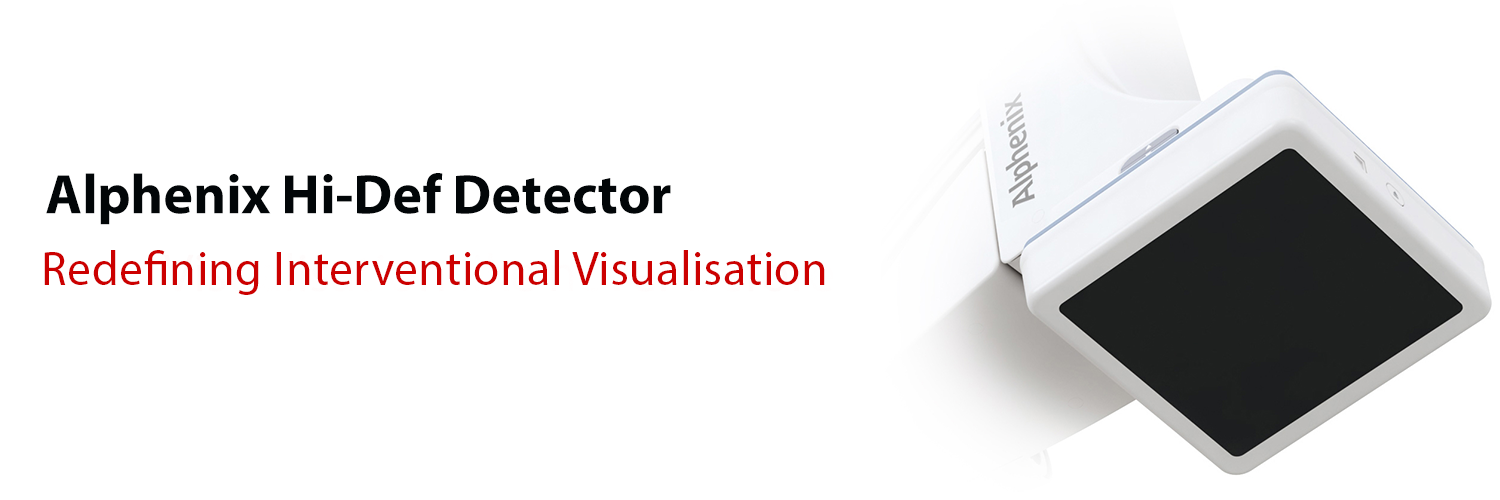

Alphenix Hi-Def Detector

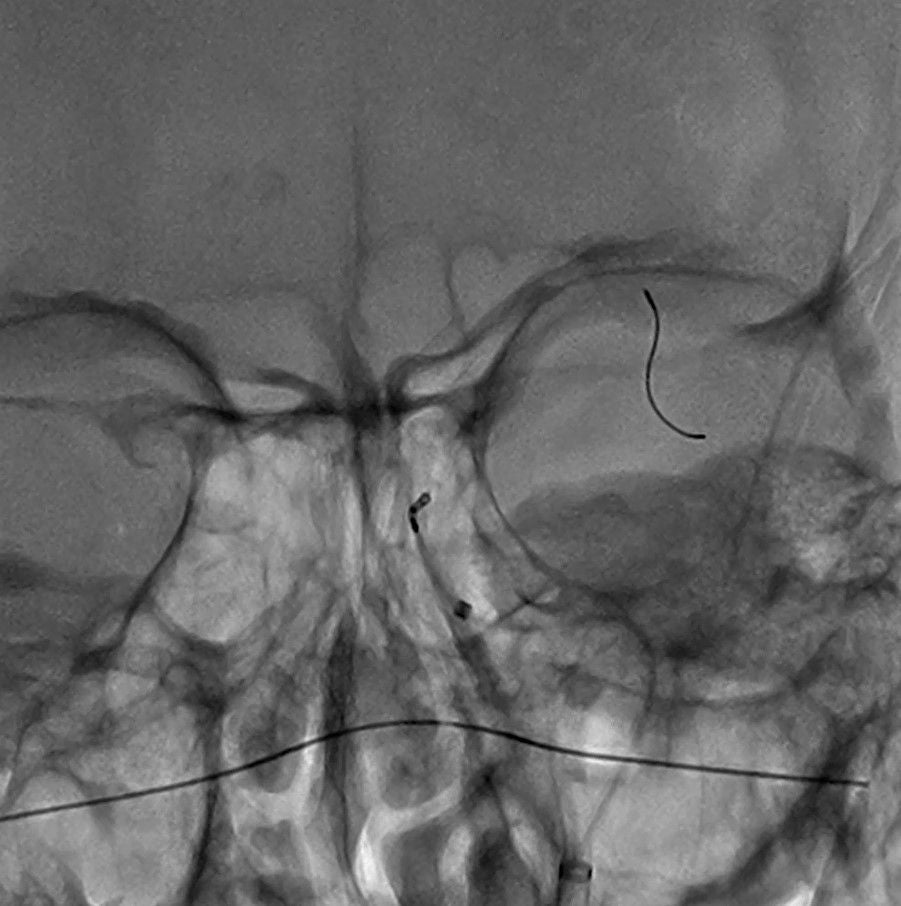

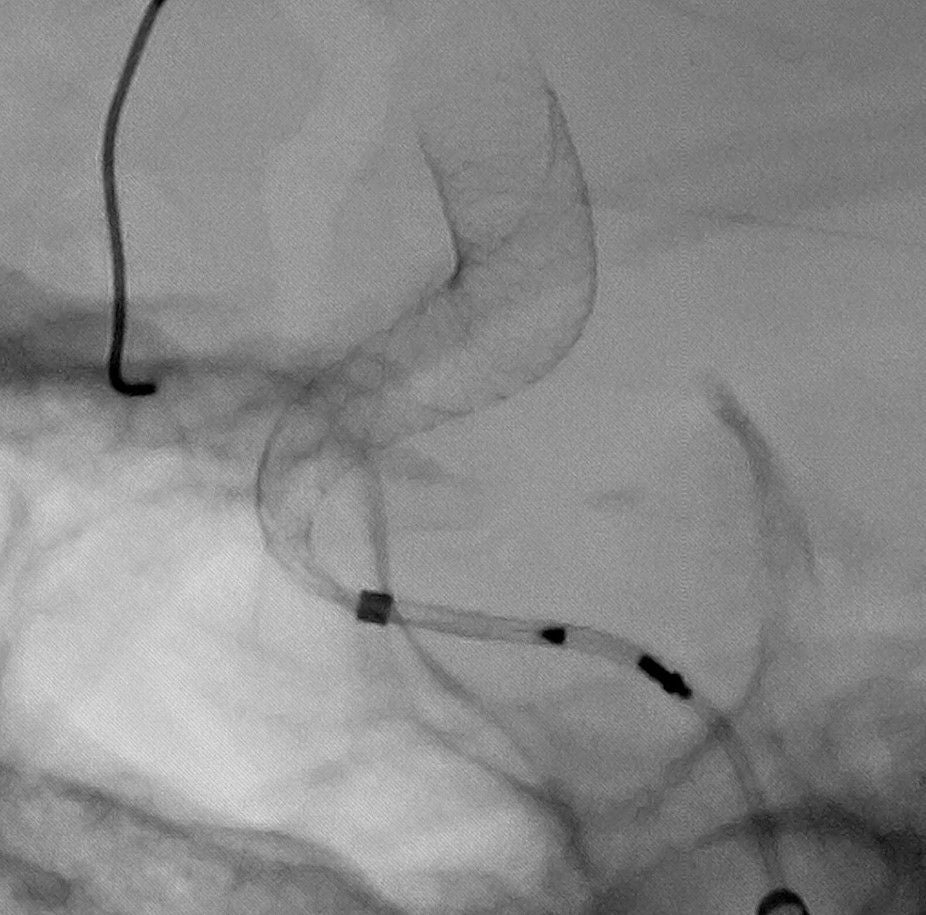

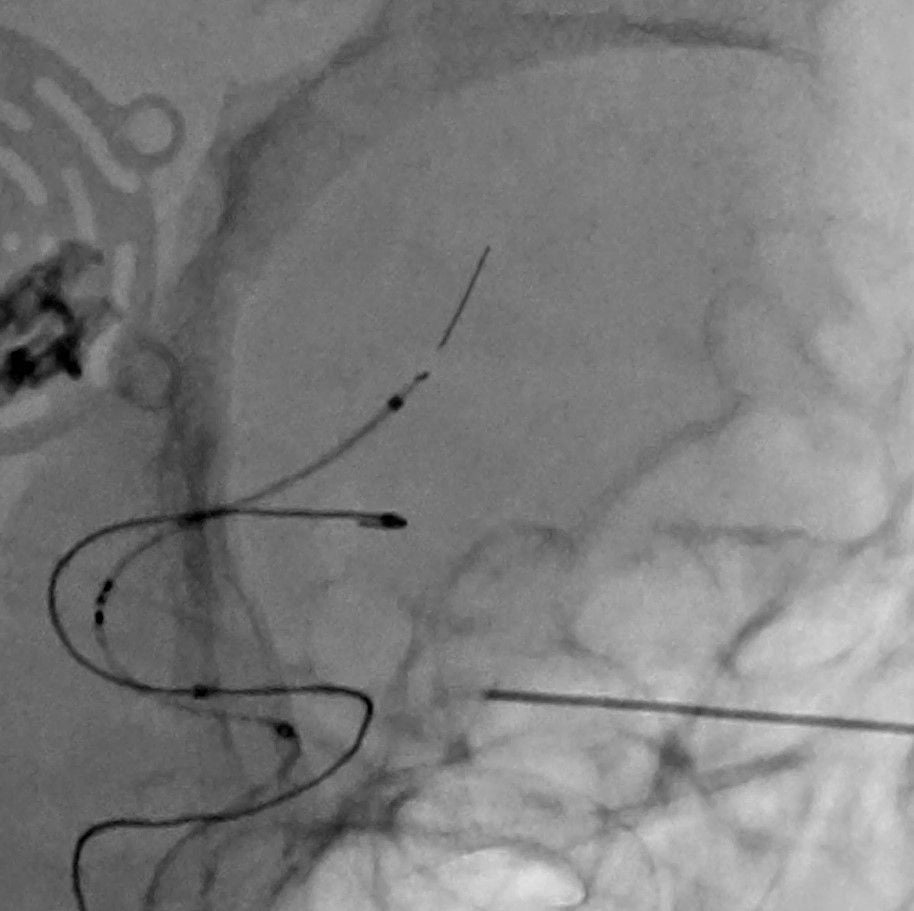

Aneurysm Stenting (Flow Diverter)
Hi-Def imaging in the treatment of a left PCOM aneurysm, using a 6F Sheath, Phenom Plus & Phenom 27 Microcatheter and deploying a 4.0 x 20mm pipeline flex flow diverter stent.
The Hi-Def mode provides clear visualisation of stent position and deployment, allowing confidence in full deployment and stent apposition of this flow diverter.

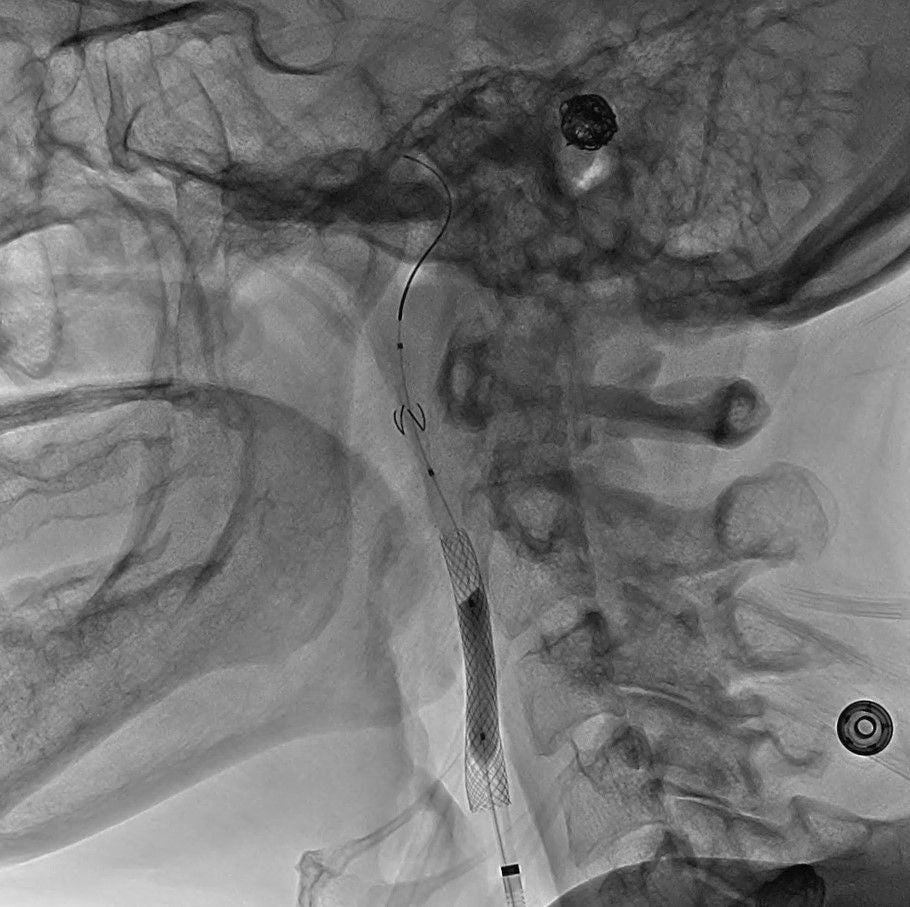

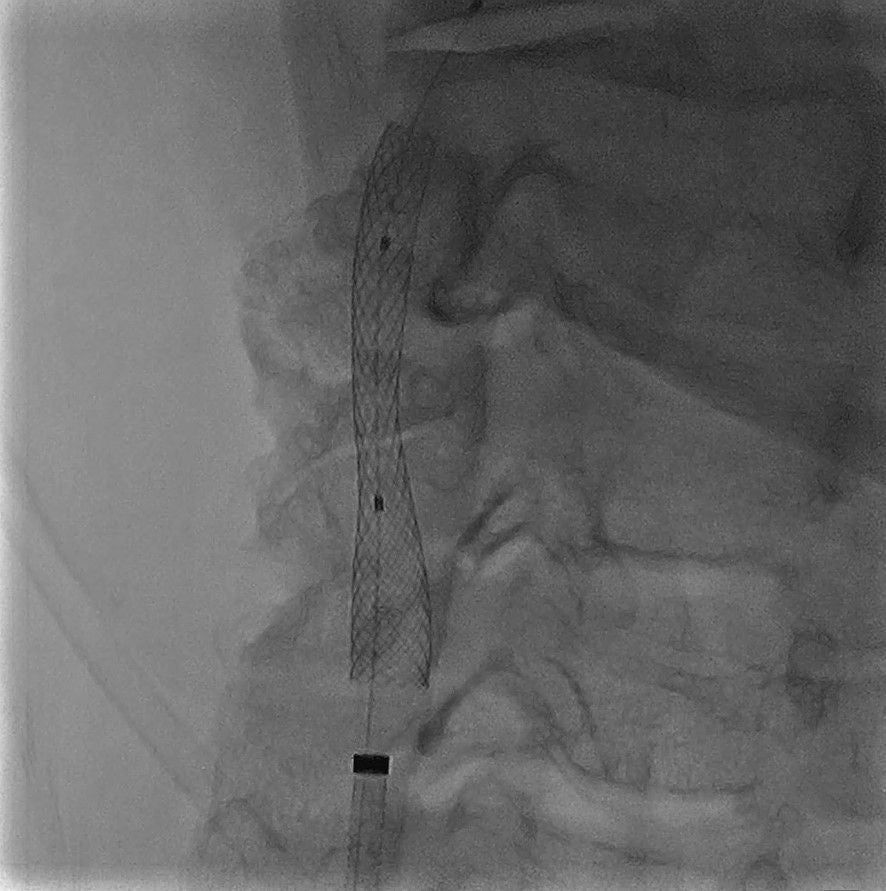

Carotid Stenting
Hi-Def mode providing enhanced visualisation during the treatment of a symptomatic right ICA stenosis.
8.0 x 21mm WALLSTENT, 7.2mm Emboshield NAV6 embolic protection device and AVIATOR Plus 4.0 x 20mm balloon.

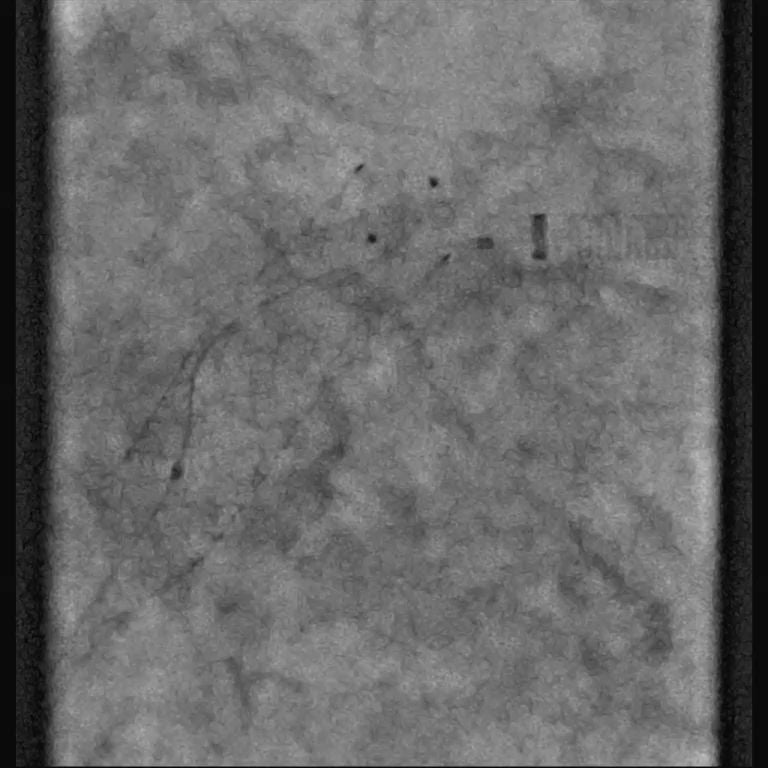

Stent-Assisted Coiling
Hi-Def imaging provides the highest possible resolution to accurately evaluate stent apposition.
Incomplete stent apposition is a risk factor during stent-assisted coiling of wide-necked intracranial aneurysms and can result in a delayed ischemic event post treatment.
Hi-Def imaging enhances clinical confidence and improves patient outcomes.

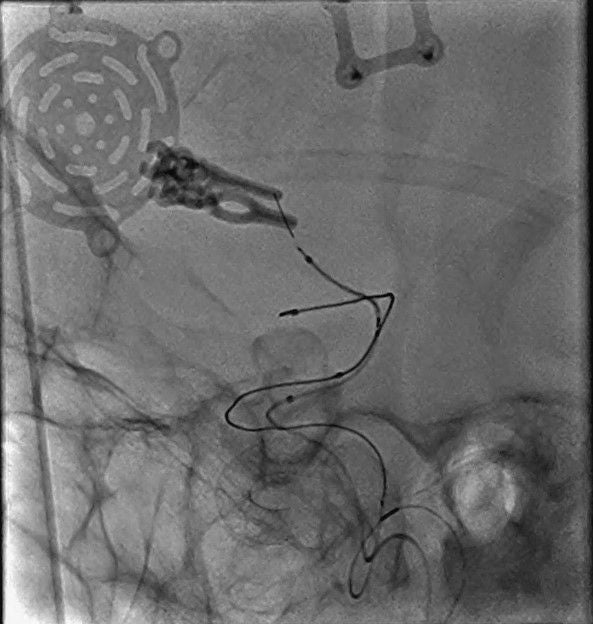

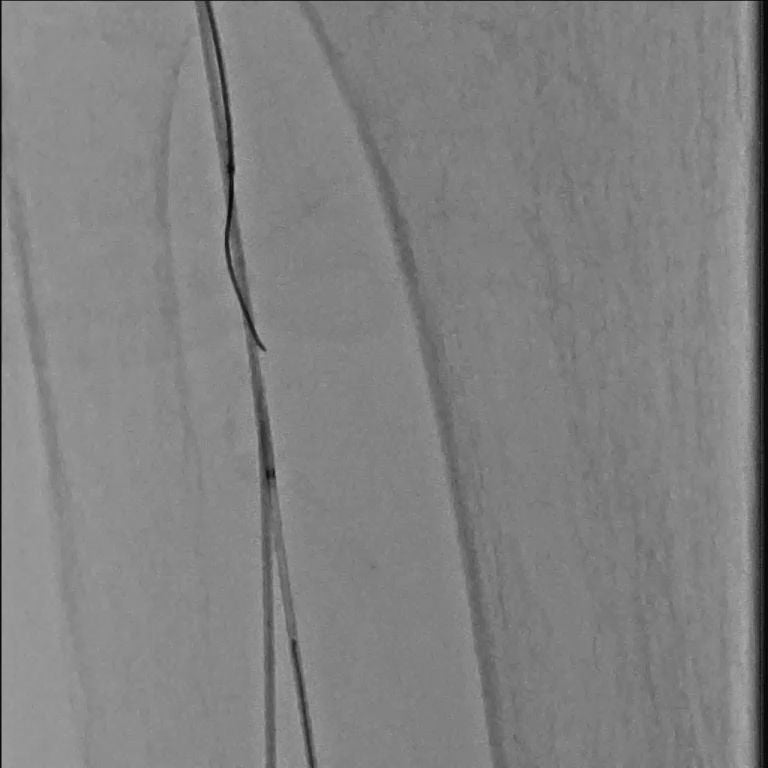

Peripheral Intervention
Hi-Def imaging is a valuable tool in challenging peripheral interventional cases.
With twice the spatial resolution of FPD technology, Hi-Def mode can provide clinicians with the improved visualisation needed to pass guide-wires and engage catheters during challenging retrograde and antegrade revascularisation.
Image Resolution for Tomorrow's Interventions
Innovative Hi-Def imaging system for complex interventional cardiology procedures
Initial experience using a novel Hi-Def imaging system shows that it can be used safely to improve visualisation of coronary arteries and interventional devices during PCI in real-time, with no observable increase in patient dose. Images obtained in the Hi-Def setting have a higher resolution and improved quality compared to standard imaging modes, allowing visual analysis of vessel anatomy and stent structure with a high level of accuracy.
- Salman A. Arain, MD, FACC, FSCAI, and Richard Smalling, MD, PhD, FACC, MSCAI,
The University of Texas Health Science Center at Houston, Houston, TX.
Refine and redefine intervention using high-definition (Hi-Def) technology
Average procedure time, average fluoro time, the total number of X-ray pulses and cumulative air kerma were all significantly reduced …
Initial experience using a novel high definition (Hi-Def) imaging system in peripheral arterial interventions
“Our initial experience using a novel Hi-Def imaging system shows that it can effectively be used in real-time to improve visualisation of lower extremity vasculature and interventional devices during complex peripheral arterial interventions and may be used to improve technical outcomes.”
-Salman A. Arain, Steven Napierkowski, Michael Schechter, Wahaj Aman, Richard W. Smalling
The University of Texas Health Science Center at Houston, Houston, TX
-Salman A. Arain, Steven Napierkowski, Michael Schechter, Wahaj Aman, Richard W. Smalling
The University of Texas Health Science Center at Houston, Houston, TX
"The Hi-Def technology by Canon Medical, provides a new visualisation gateway to clinically expand the horizons of neuro intervention beyond the standard conventional imaging technology today."
- Adnan Siddiqui MD, PhD, FAHA
Vice-Chairman and Professor of Neurosurgery
SUNY University at Buffalo
Director, Neurosurgical Stroke Services, Kalieda Health
Chief Medical Officer, Jacobs Institute
- Adnan Siddiqui MD, PhD, FAHA
Vice-Chairman and Professor of Neurosurgery
SUNY University at Buffalo
Director, Neurosurgical Stroke Services, Kalieda Health
Chief Medical Officer, Jacobs Institute
“During neurovascular therapy being able to see the intricate details in anatomy, and access devices gives us the confidence to quickly and better treat our patients with less chance of complications.”
- Prof. Ichiro Nakahara
Department of Comprehensive Strokology
Fujita Health University Hospital
- Prof. Ichiro Nakahara
Department of Comprehensive Strokology
Fujita Health University Hospital
Initial investigations of a special high-definition (Hi-Def) zoom capability in a new detector system for neuro-interventional procedures
The Hi-Def zoomed images were much preferred over the FPD, indicating the potential to improve endovascular procedures and hence outcomes using such a Hi-Def feature.
S.V. Setlur Nagesh et al, NCBI
The Hi-Def zoomed images were much preferred over the FPD, indicating the potential to improve endovascular procedures and hence outcomes using such a Hi-Def feature.
S.V. Setlur Nagesh et al, NCBI
Quantitative comparison of Hi-Def and FPD zoom modes in an innovative detector using Relative Object Detectability (ROD) metrics
Due to their higher resolution, high-definition-mode images are sharper and visually preferred compared with the flat panel detector images. The improved imaging provided by the high-definition mode can potentially provide an advantage during neurointerventional procedures.
J. Krebs et al, SPIE Digital Library
Due to their higher resolution, high-definition-mode images are sharper and visually preferred compared with the flat panel detector images. The improved imaging provided by the high-definition mode can potentially provide an advantage during neurointerventional procedures.
J. Krebs et al, SPIE Digital Library
High-Definition Zoom Mode, a High-Resolution X-Ray Microscope for Neurointerventional Treatment Procedures: A Blinded-Rater Clinical-Utility Study
Each of the metrics demonstrated improved performance of the Hi-Def zoom mode over the standard FPD mode in imaging a wide array of objects such as stents, wires, and spheres. Of particular note is the greater performance of the Hi-Def when considering the high spatial frequencies necessary for visualizing fine image details of a pipeline stent.
S.V. Setlur Nagesh et al, American Journal of Neuroradiology
Each of the metrics demonstrated improved performance of the Hi-Def zoom mode over the standard FPD mode in imaging a wide array of objects such as stents, wires, and spheres. Of particular note is the greater performance of the Hi-Def when considering the high spatial frequencies necessary for visualizing fine image details of a pipeline stent.
S.V. Setlur Nagesh et al, American Journal of Neuroradiology
Benefits Using High-Definition (Hi-Def) Technology in Complex Neurovascular Procedures
The Hi-Def technology by Canon Medical, provides a new visualisation gateway to clinically expand the horizons of neuro intervention beyond the standard conventional imaging technology today.
- Adnan Siddiqui MD, PhD, FAHA
The Hi-Def technology by Canon Medical, provides a new visualisation gateway to clinically expand the horizons of neuro intervention beyond the standard conventional imaging technology today.
- Adnan Siddiqui MD, PhD, FAHA
Experience using the New Alphenix Interventional System for Neuro-endovascular Therapy
During neurovascular therapy being able to see the intricate details in anatomy, and access devices gives us the confidence to quickly and better treat our patients with less chance of complications.
- Prof. Ichiro Nakahara, Department of Comprehensive Strokology, Fujita Health University Hospital
During neurovascular therapy being able to see the intricate details in anatomy, and access devices gives us the confidence to quickly and better treat our patients with less chance of complications.
- Prof. Ichiro Nakahara, Department of Comprehensive Strokology, Fujita Health University Hospital
Innovative High Definition (Hi-Def) Imaging System for Complex Interventional Cardiology Procedures
Andrew Kuhls-Gilcrist, PhD, DABR, Dale Marek, RT(R), Mark Hohn, Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc.

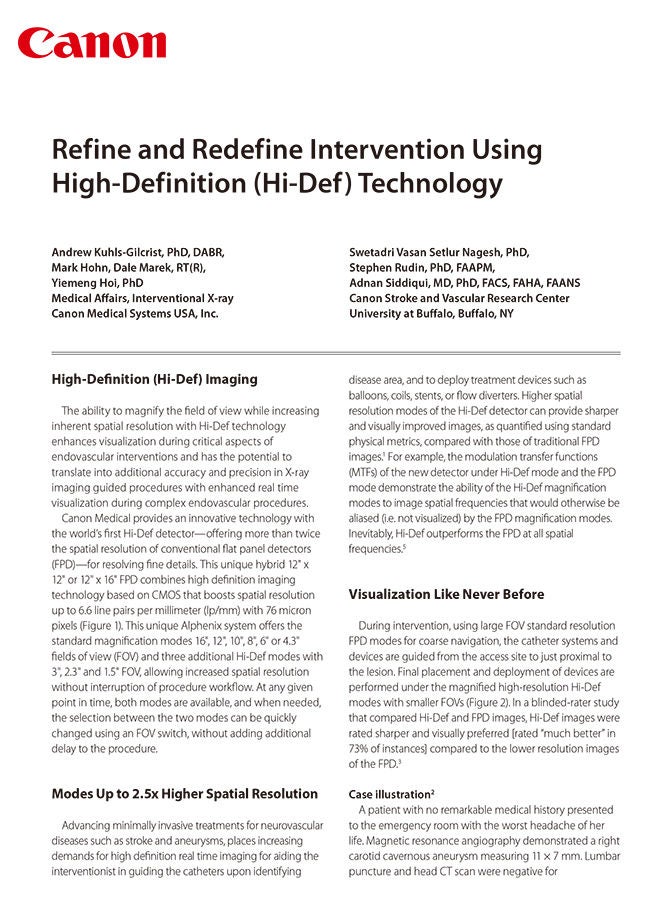

Refine and Redefine Intervention Using High-Definition (Hi-Def) Technology
Andrew Kuhls-Gilcrist, PhD, DABR, Mark Hohn, Dale Marek, RT(R), Yiemeng Hoi, PhD Medical Affairs, Interventional X-ray, Canon Medical Systems USA, Inc.
Swetadri Vasan Setlur Nagesh, PhD, Stephen Rudin, PhD, FAAPM, Adnan Siddiqui, MD, PhD, FACS, FAHA, FAANS Canon Stroke and Vascular Research Center University at Buffalo, Buffalo, NY
High Definition Imaging Reduces Procedure Time Without Impacting Patient Dose in Image-Guided Neuro Interventional Procedures.
Swetadri Vasan Setlur Nagesh, MS,PhD, Buffalo, NY (Presenter) Nothing to Disclose
Single-center experience of using high definition (Hi-Def) imaging during neurointervention treatment of intracranial aneurysms using flow diverters.
PSwetadri Vasan Setlur Nagesh1,2, Kunal Vakharia2,3, Muhammad Waqas2,3, Stephan A Munich2,3, Daniel R Bednarek1,2,4, Jason M Davies2,3,5, Kenneth V Snyder2,3, Maxim Mokin6, Stephen Rudin1,2,4,7,8,9, Elad I Levy1,2,3,4, Adnan H Siddiqui 1,2,3,4
System Options
Flexible Configurations to Address Your Clinical Needs

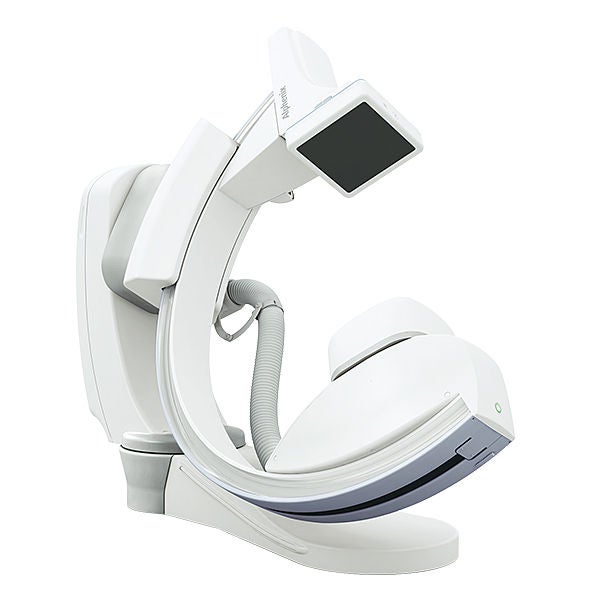

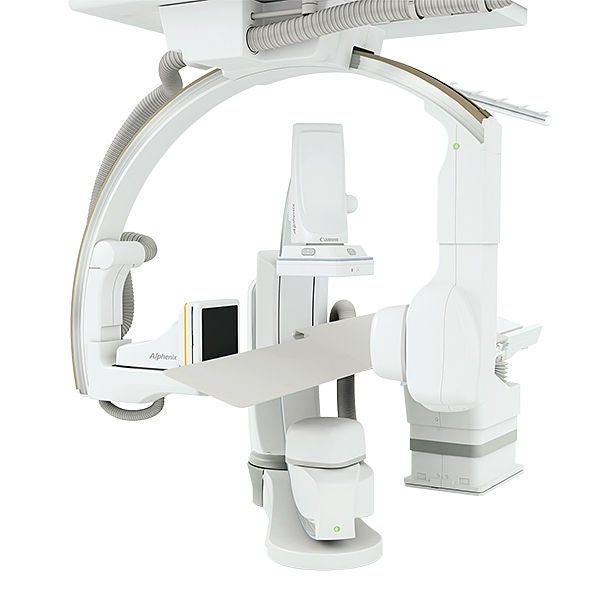

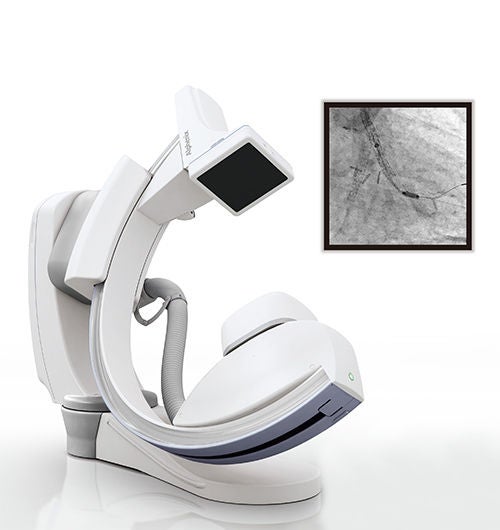

Developed in collaboration with leading clinicians, Alphenix offers a range of C-arm positioners designed to offer unprecedented access to your patient.
