Aplio a-series

Aplio a550 integrates industry-leading imaging technologies, advanced applications and intuitive controls for the busy clinician. The Aplio a450 is a feature-rich solution that can be scaled to suit a wide range of diagnostic portfolios.

Menu

Women’s Healthcare

a-series

Women’s Healthcare
Women’s Healthcare
Women’s Healthcare
Women’s Healthcare
Endo Smart 3D using 2D transducers - Standard technology on the a-series is a function called SMART 3D. This allows 3D reconstruction views to be acquired using a manual sweep of the 2D transducer. This means coronal imaging of the uterus can be easily obtained to assess cavity shape.
20 week Obstetric Profile - This is a high resolution, high frequency B - mode image demonstrating the structures of the baby face, neck, and chest, in profile; using 10C1 transducer.
20 week Obstetrics - Baby Tongue - This a high resolution ,high frequency image demonstrating soft tissue detail of the baby’s tongue using 10C1 transducer.
20 week Obstetrics Advanced Dynamic Flow Aortic Arch - This image shows Advanced Dynamic Flow demonstrating the Aortic Arch using 10C1 transducer.
Women’s Healthcare
Women’s Healthcare
Women’s Healthcare
Women’s Healthcare
× 拡大画像

Breast imaging

a-series

Breast imaging
Breast imaging
Breast imaging
Breast imaging
Breast - B-mode image using differential tissue harmonics showing normal breast tissue using the 14L5 transducer.
Breast Cancer with Advanced Dynamic Flow - This B-Mode image includes colour information using the high resolution advanced dynamic flow technology which demonstrates vascularity within Breast Cancer lesion. The 14L5 transducer was used.
Breast lesion with CDI - A solid breast mass with colour doppler interrogation. Excellent contrast can be seen between glandular and fatty breast tissue. B-mode imaging is retained with the use of colour doppler.

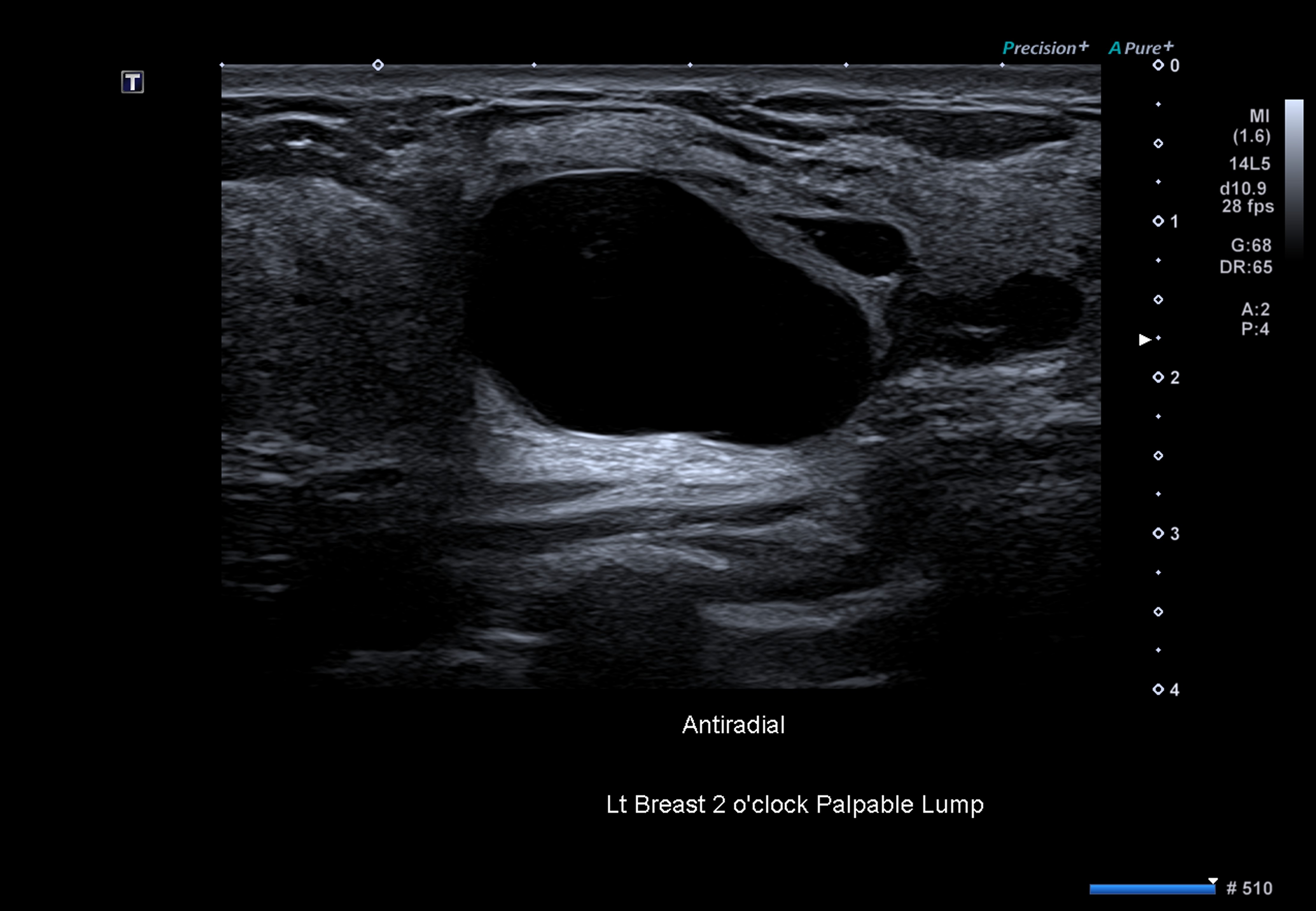

Large breast cyst - Precision imaging helps to remove random noise and also improves border detection. This helps with the imaging of breast cysts by removing artificial echoes and allows confidence in diagnosis without the need to adjust imaging settings. Posterior enhancement is retained.
Breast imaging
Breast imaging
Breast imaging
Breast imaging
