Clinical Gallery

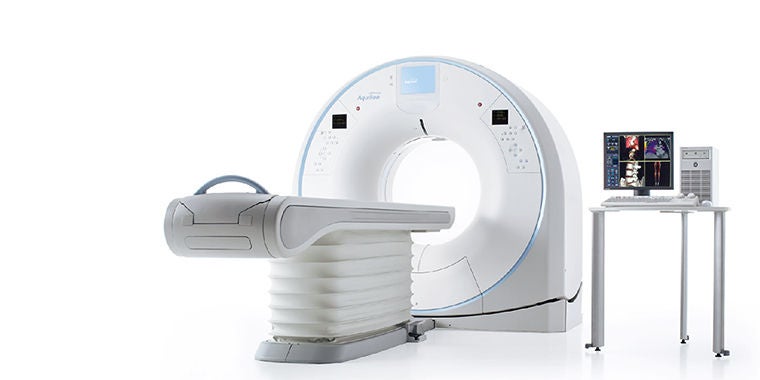

Aquilion Lightning 80

Canon's comprehensive suite of Adaptive Diagnostic imaging solutions that simplify complex protocols and provide consistent quality results.

Advanced intelligent Clear-IQ Engine (AiCE) is now available on Aquilion Lightning 80.

Menu

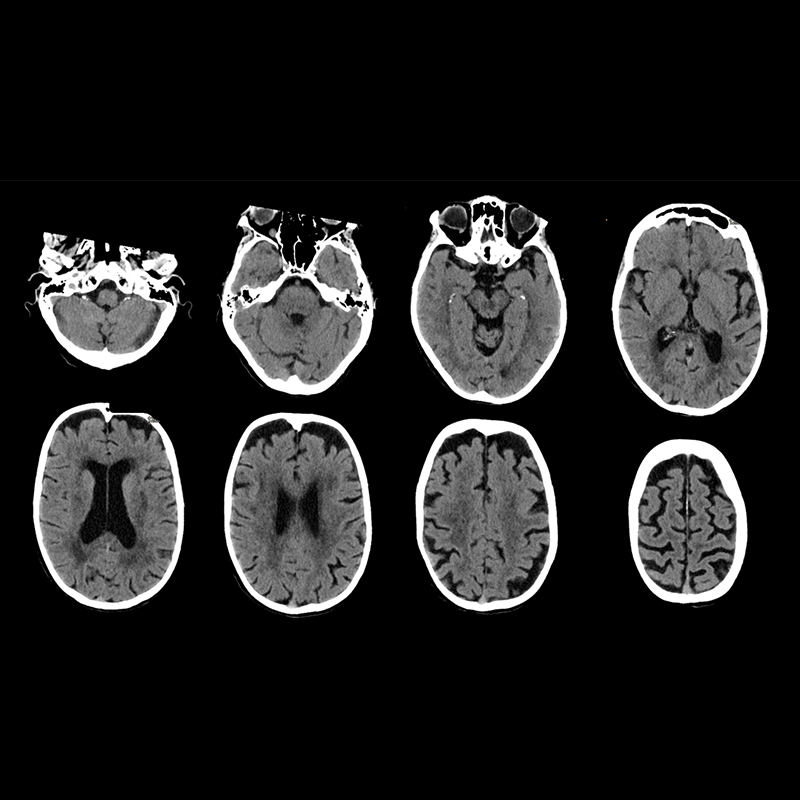

Routine brain Head & Neck 1

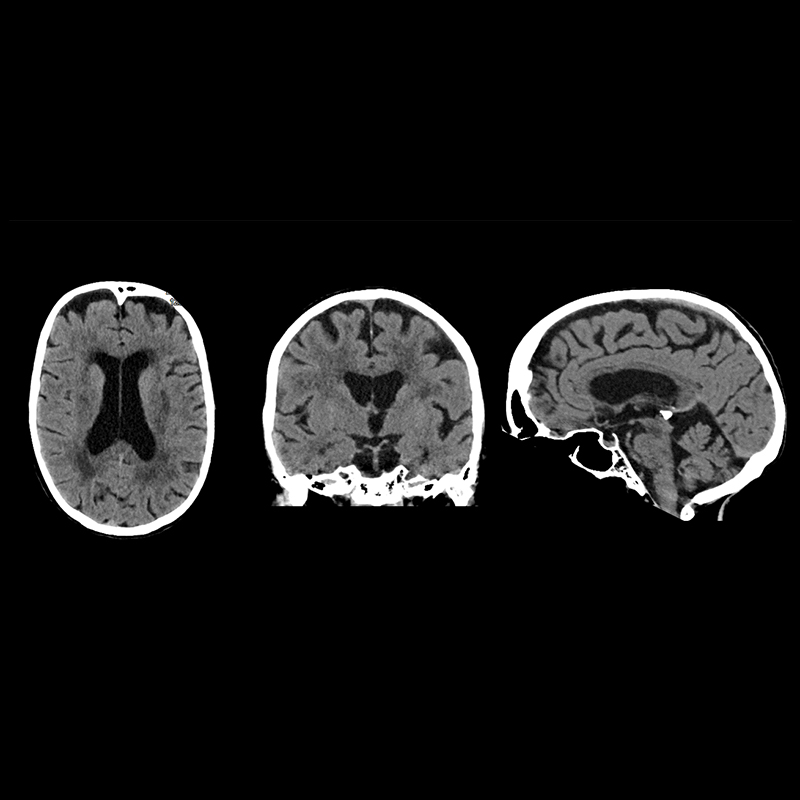

Routine brain

Aquilion Lightning 160 Routine non contrast Brain scan reconstructed with AiCE

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 1.5 s
CTDl 35.7 mGy
DLP 686.3 mGy.cm
Effective Dose 1.44 mSv
k factor 0.0021 (AAPM Report 96)
Routine brain Head & Neck 1
Routine brain Head & Neck 1
Routine brain Head & Neck 1
Routine brain Head & Neck 1
× 拡大画像

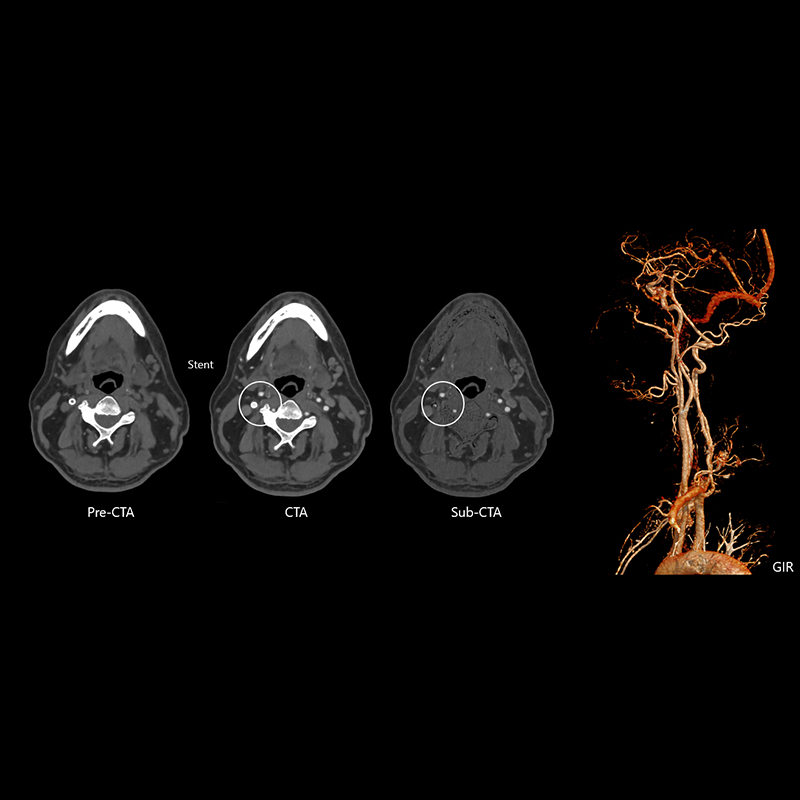

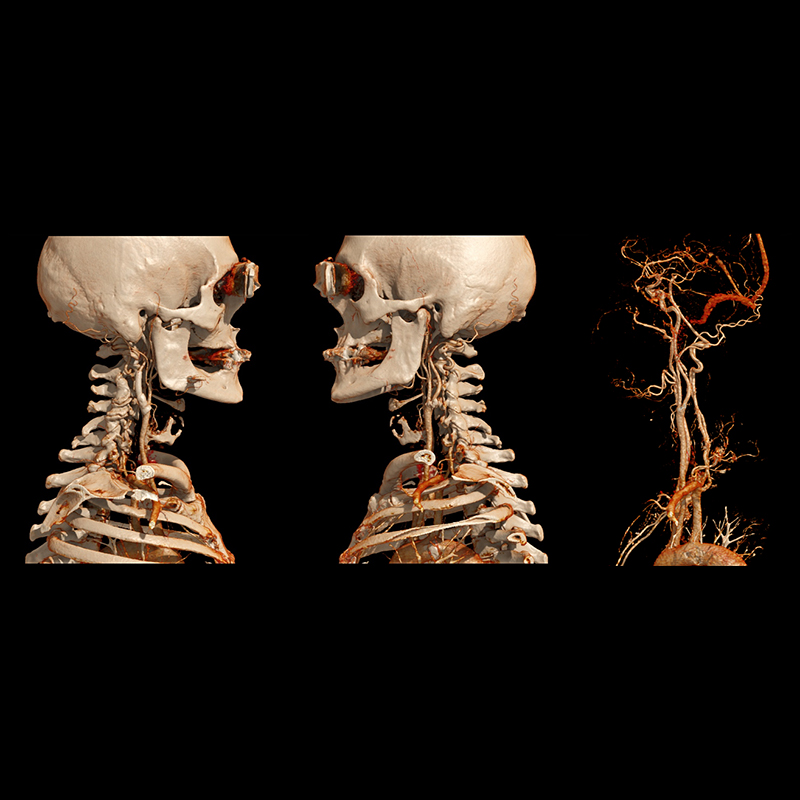

Carotid subtraction CTA Head & Neck 2

Carotid subtraction CTA

Aquilion Lightning 80 Carotid CTA reconstructed with AiCE and SURESubtraction Angio

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 0.5 s
CTDl Pre-CTA 4.8mGy, Post CTA 6.0mGy
DLP Pre-CTA 176.3 mGy.cm, Post-CTA 219.6 mGy.cm
Effective Dose 2.34 mSv
k factor 0.0059 (AAPM Report 96)
Carotid subtraction CTA Head & Neck 2
Carotid subtraction CTA Head & Neck 2
Carotid subtraction CTA Head & Neck 2
Carotid subtraction CTA Head & Neck 2
× 拡大画像

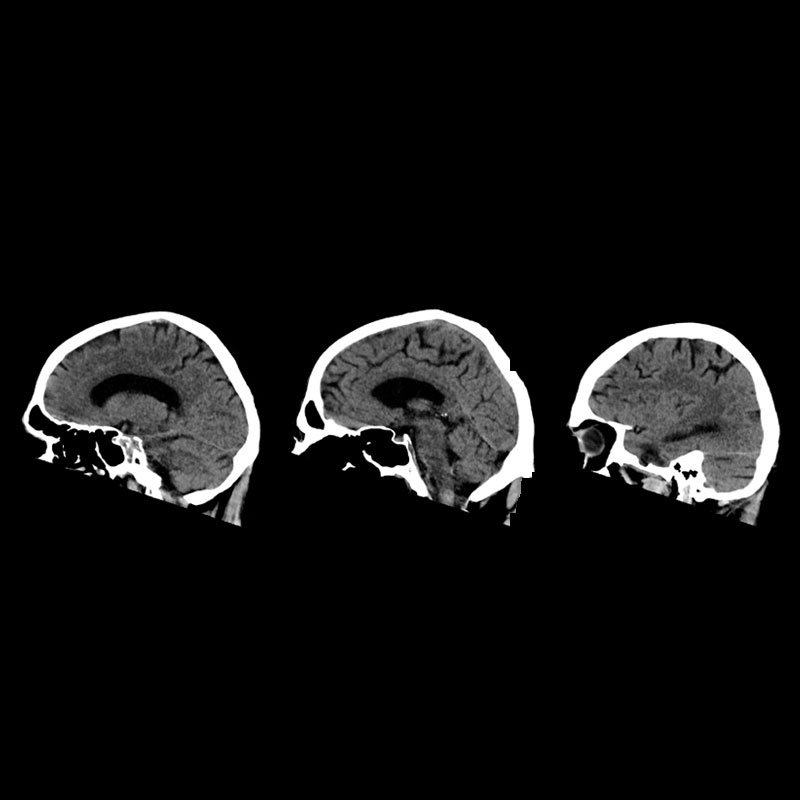

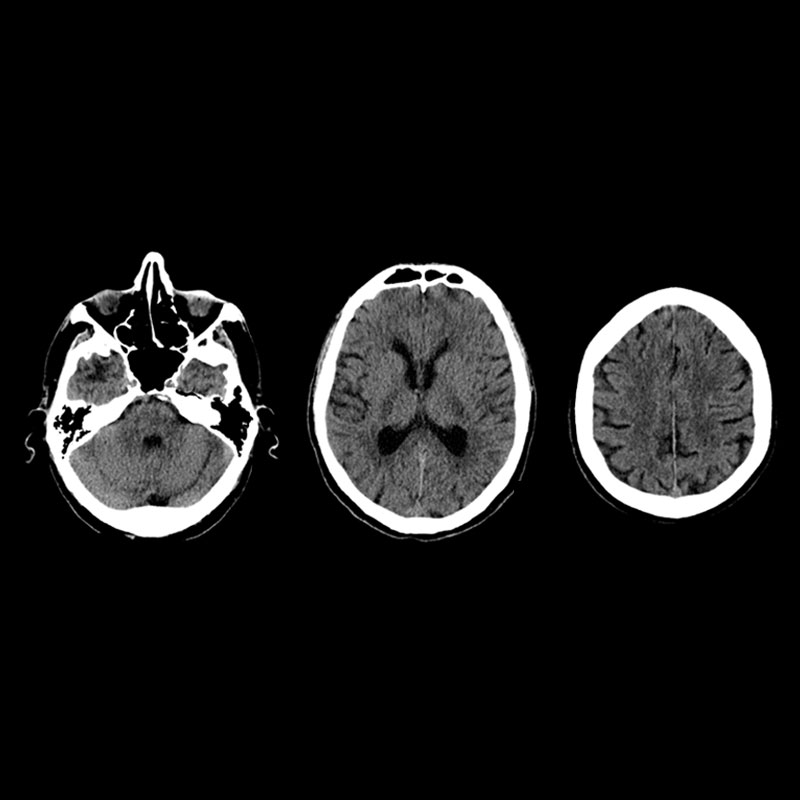

Brain Head & Neck 3

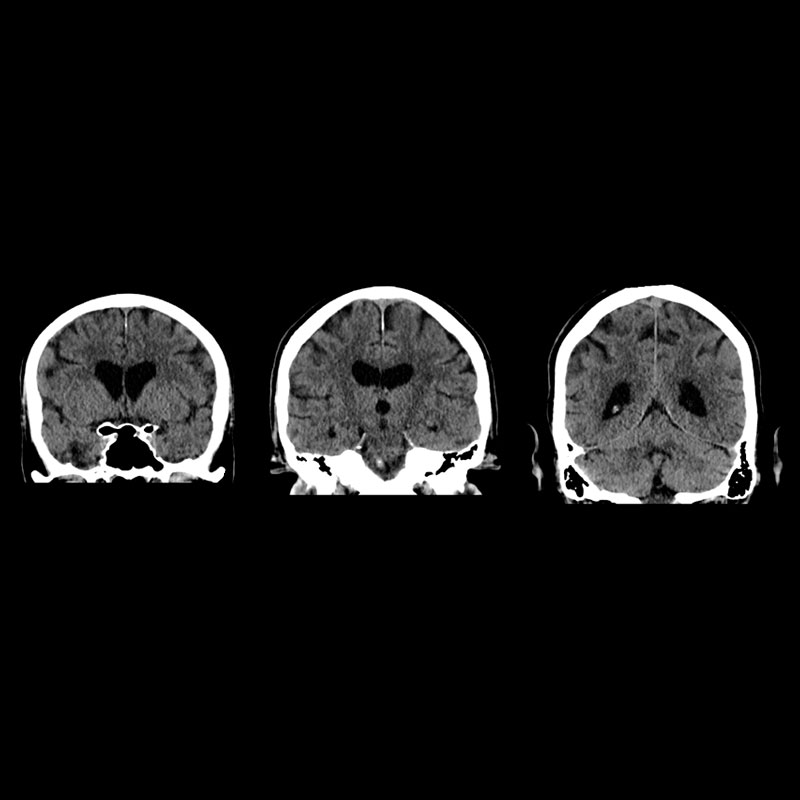

Brain

Aquilion Lightning 80 68-year-old man underwent a non-contrast brain CT scan for evaluation of headaches.

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 0.5 mm
CTDlvol 53.5 mGy
Effective Dose 1.96 mSv
k-factor 0.0059 (AAPM Report 96)
Brain Head & Neck 3
Brain Head & Neck 3
Brain Head & Neck 3
Brain Head & Neck 3
Brain Head & Neck 3
Brain Head & Neck 3
× 拡大画像

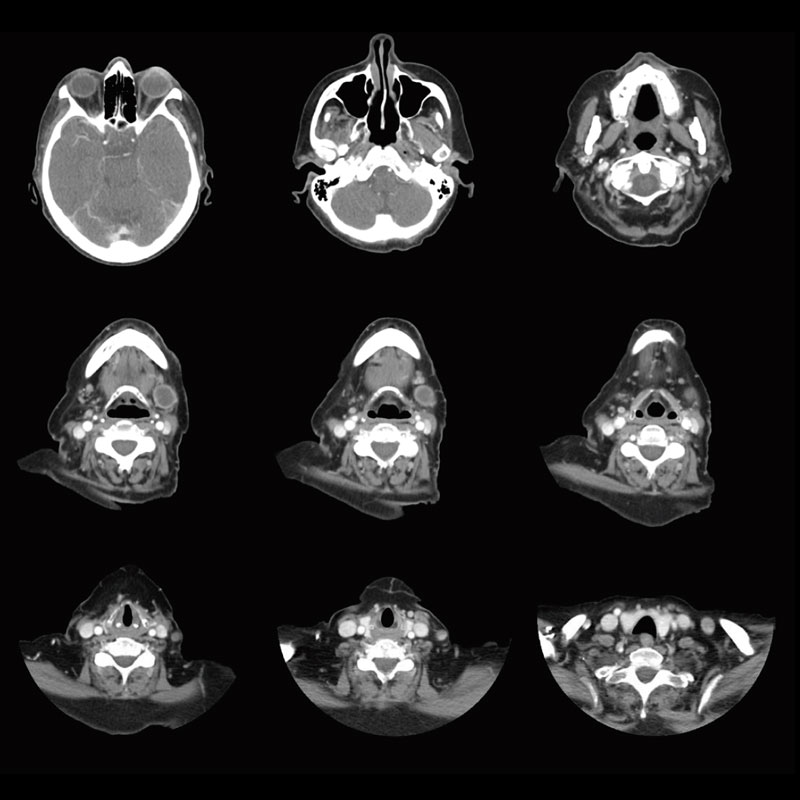

Neck with Contrast Head & Neck 4

Neck with Contrast

Aquilion Lightning 160 77-year-old woman presented to the CT department for evaluation of a lump in the left side of her neck. A contrast CT scan of the neck was performed.

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 0.5 s
CTDlvol 6.9 mGy
Effective Dose 1.23 mSv
k-factor 0.0059 (AAPM Report 96)
Neck with Contrast Head & Neck 4
Neck with Contrast Head & Neck 4
